Haas VF-5SS Vertical Machining Center

Machining Centers
Price on Request
Back to Products
Machine Serviced & Checked

Fully inspected and maintained by certified technicians before delivery.

Shipping Across US Mainland

Fast and reliable transport options available within the continental USA.

12-Month Warranty

All machines come with a full one-year warranty, giving you added peace of mind and assurance that your investment is protected.

Best Price Direct from Owner

No resellers involved — you get the most competitive price straight from us.

Product Description

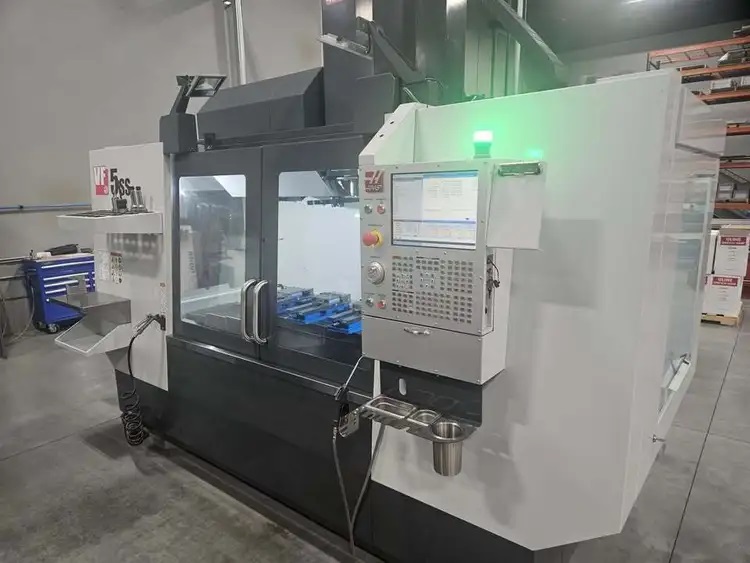

The Haas VF-5SS is part of the Super-Speed series, engineered for high-volume production and fast cycle times. This model features a powerful 12,000 RPM inline direct-drive spindle, rapid axis movements, and an ultra-fast 30+1 position side-mount tool changer—ideal for demanding machining applications. With extended Y-axis travel compared to the VF-4SS, the VF-5SS provides excellent capacity for larger parts without compromising speed or precision.

Key Specifications

  • Year: 2019

  • Travels: X = 50", Y = 26", Z = 25"

  • Spindle: 30 HP, 12,000 RPM, Inline Direct-Drive, CT40/BT40/HSK-A63

  • Table Size: 54" × 24" with 7 T-slots

  • ATC: 30+1 side-mount tool changer

  • Rapids: 1,200 ipm (all axes)

  • Cutting Feedrate: up to 833 ipm

  • Coolant Capacity: 95 gallons

  • Machine Weight: approx. 12,700 lbs

Equipped With

  • 30-Tool Side-Mount ATC

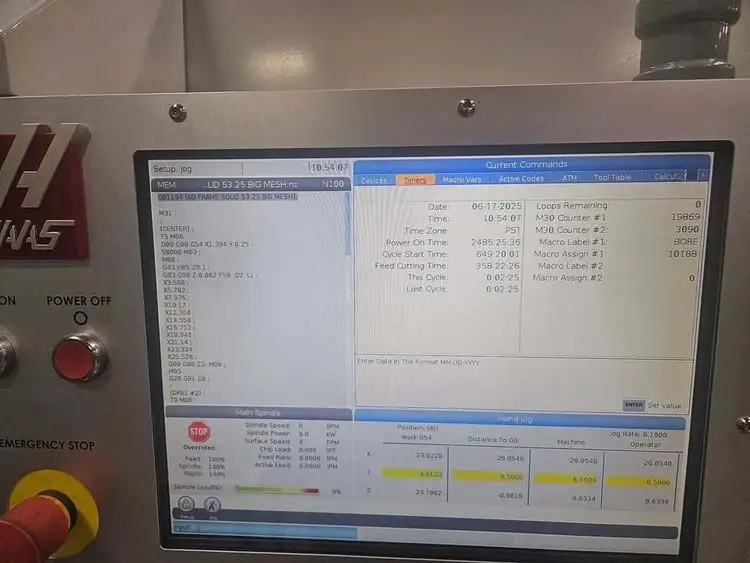

  • Haas CNC Control

  • Full Coolant System

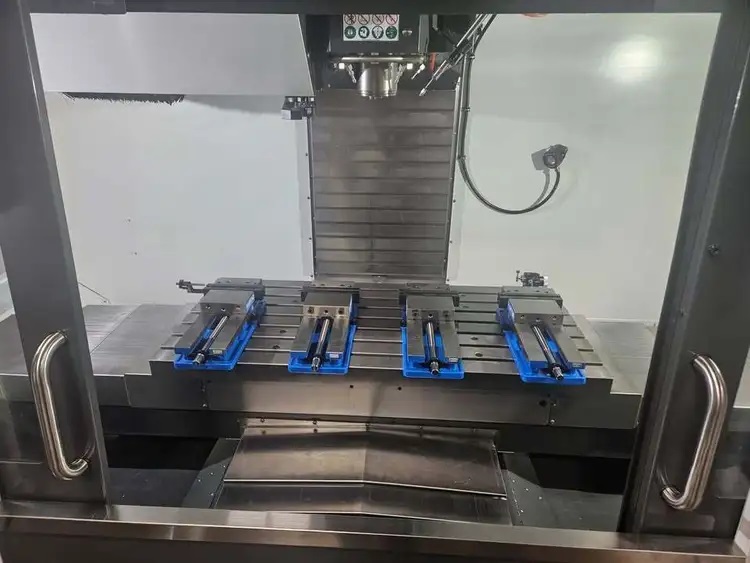

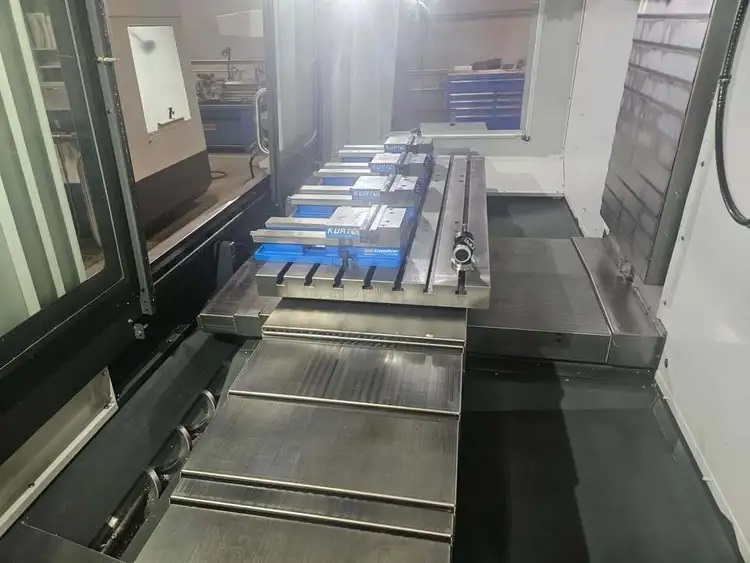

  • 54" × 24.5" T-slot Table

  • Renishaw OTS Probe

Highlights

  • High-speed machining capability for reduced cycle times

  • Extended Y-axis travel for increased part capacity

  • Reliable Haas CNC platform with proven performance
