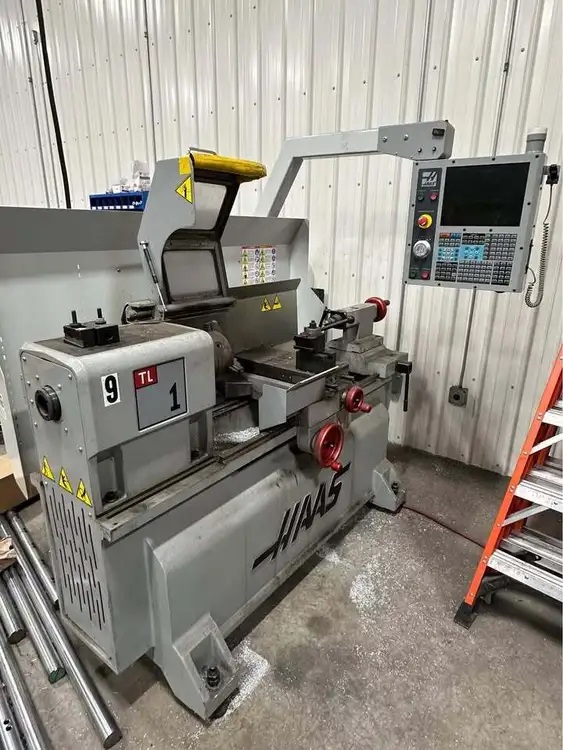

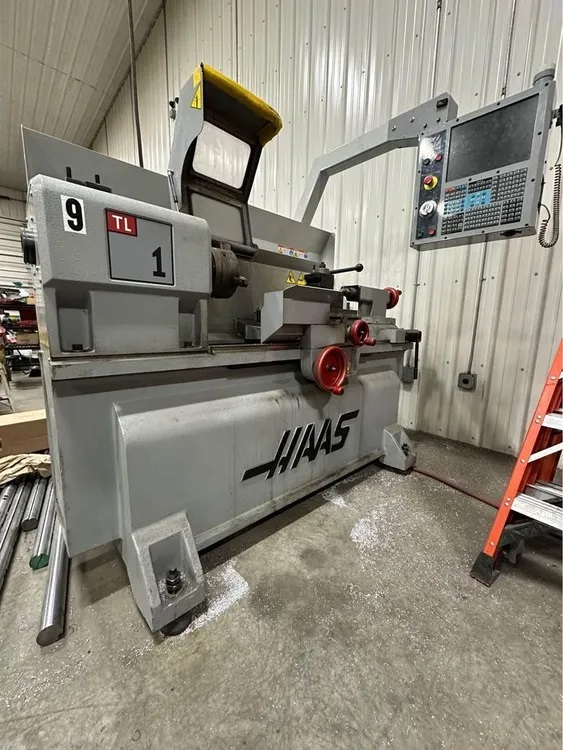

Haas TL-1 CNC Lathe

CNC Lathe
Price on Request
Back to Products
Machine Serviced & Checked

Fully inspected and maintained by certified technicians before delivery.

Shipping Across US Mainland

Fast and reliable transport options available within the continental USA.

12-Month Warranty

All machines come with a full one-year warranty, giving you added peace of mind and assurance that your investment is protected.

Best Price Direct from Owner

No resellers involved — you get the most competitive price straight from us.

Product Description

The Haas TL-1 is part of Haas’s Toolroom Lathe series, designed to provide affordable, user-friendly CNC turning with the precision and flexibility of the Haas CNC system. Easy to learn and operate—even without prior G-code experience—the TL-1 is ideal for start-up shops, training environments, and as a first step into CNC machining.

Specifications

  • Year: 2008

  • Chuck Size: 8"

  • Swing Over Apron: 20"

  • Swing Over Cross Slide: 11"

  • Maximum Cutting Diameter: 16"

  • Maximum Cutting Length: 30"

  • Distance Between Centers: 30"

  • X-Axis Travel: 8"

  • Z-Axis Travel: 30"

  • Spindle Nose: A2-5

  • Spindle Bore: 2.30"

  • Spindle Speed: 1,800 RPM (max)

  • Spindle Power: 10 HP (7.5 kW)

  • Max Torque: 108 ft-lb @ 355 RPM

  • Rapids: 450 IPM (X and Z)

  • Axis Thrust: X = 3,894 lbf, Z = 1,947 lbf

  • Tailstock: Yes

  • Live Tooling: No

  • Sub Spindle: No

  • Electrical:

    • 220V / 1-Phase, 40A

    • 220V / 3-Phase, 25A

    • 440V / 3-Phase, 13A

  • Air Requirement: 80 psi

  • Machine Weight: 4,200 lbs

Equipped With

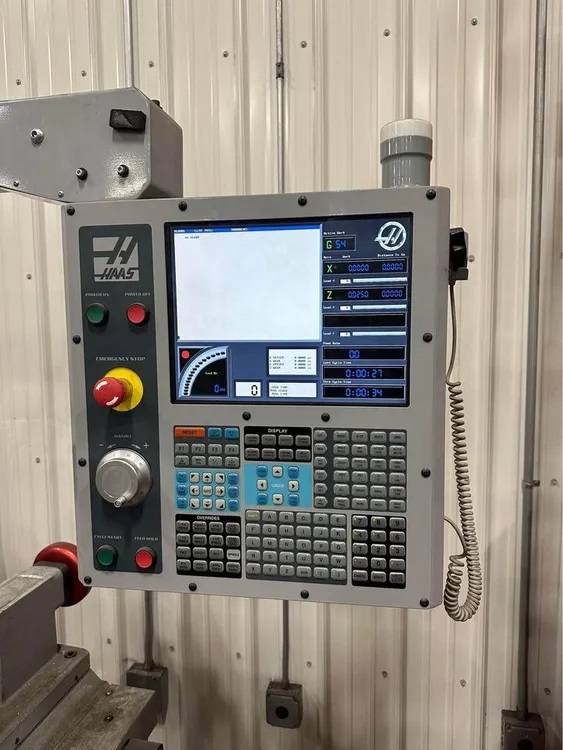

  • Haas CNC Control

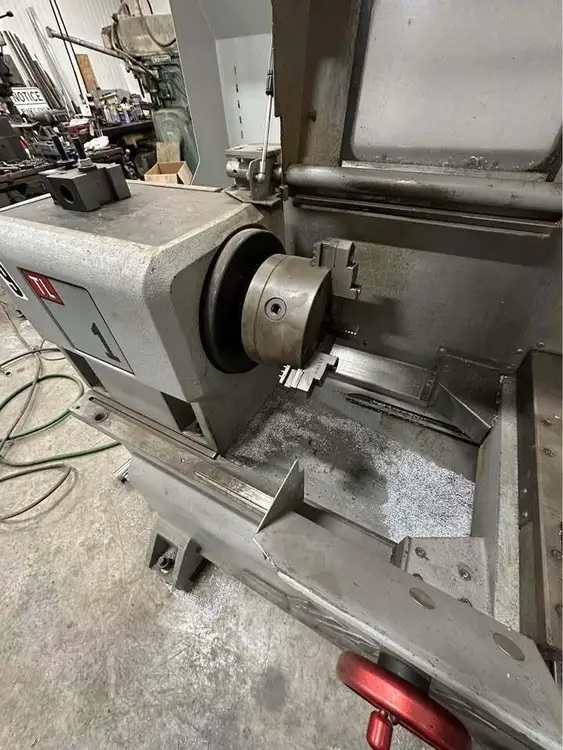

  • 8" Hydraulic Chuck

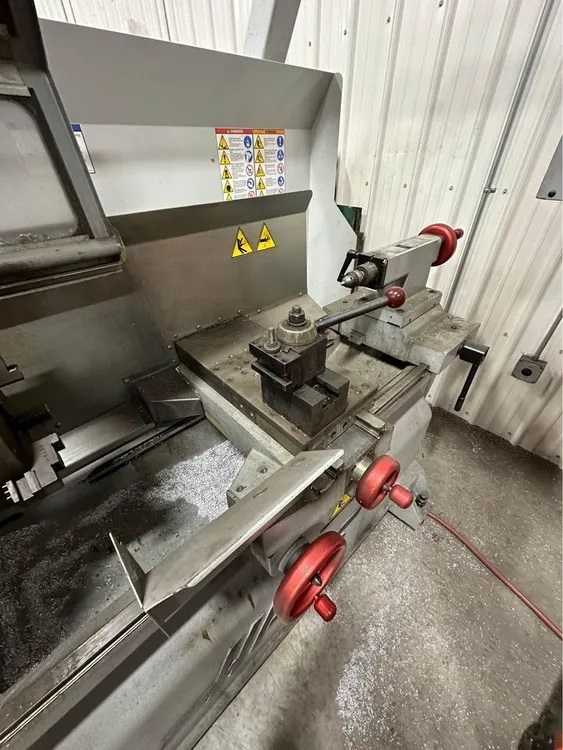

  • Tailstock

  • Coolant System

  • Standard Haas Toolroom Lathe Features
