Product Description

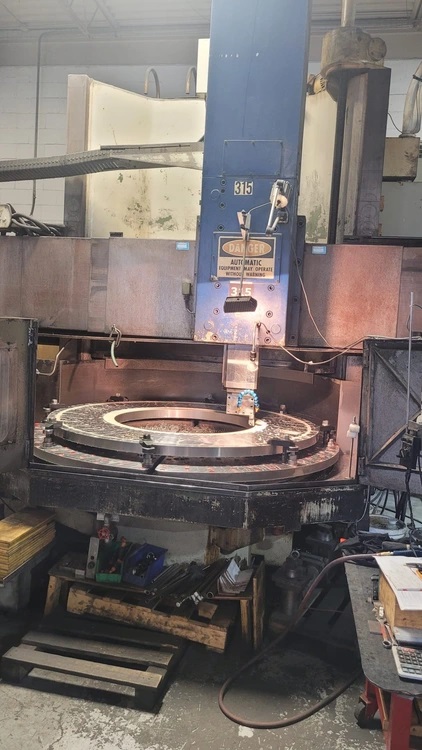

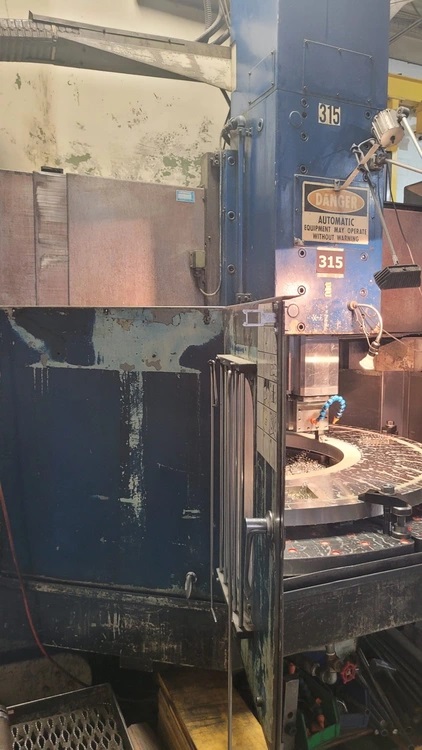

The O-M VT5-16N is a heavy-duty CNC vertical boring mill designed for machining large-diameter, heavy workpieces with precision and efficiency. Featuring a 63" table, 78.7" swing, Fanuc CNC control, and a 12-position automatic tool changer, this machine is ideal for demanding turning and boring applications.

Specifications

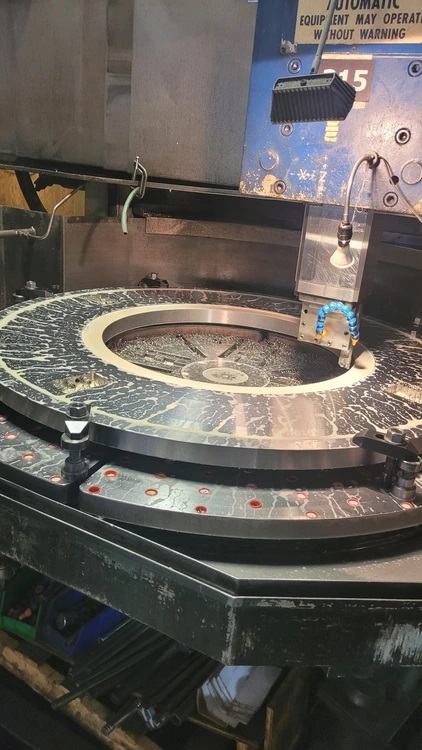

  • Table / Chuck Diameter: 63" (1600 mm)

  • Max. Swing: 78.74" (2000 mm)

  • Max. Turning Height: 63" (1600 mm)

  • Work Height Under Rail: 62.99"

  • Table Capacity: 15,400 lbs

  • Max. Table Torque: 20,000 Nm (14,470 ft-lbs)

  • Table Speeds (2-Speed Transmission):

    • Low Range: 1.6 – 66 RPM

    • High Range: 6 – 270 RPM

  • Main Motor Power: 75 HP

  • Ram Size: 8.25" x 8.25" (210 mm x 210 mm)

  • Ram Vertical Travel: 35.46" (900 mm)

  • Tool Holder Shank Size: 1.25" x 1.25" (32 mm x 32 mm)

  • Cross Rail Vertical Travel: Programmable, 6 steps every 7"

  • Height Under Cross Rail: 36"

  • Rapid Traverse: 393 IPM (10,000 mm/min)

  • Machine Weight: ~41,800 lbs (19,000 kg)

Equipped With

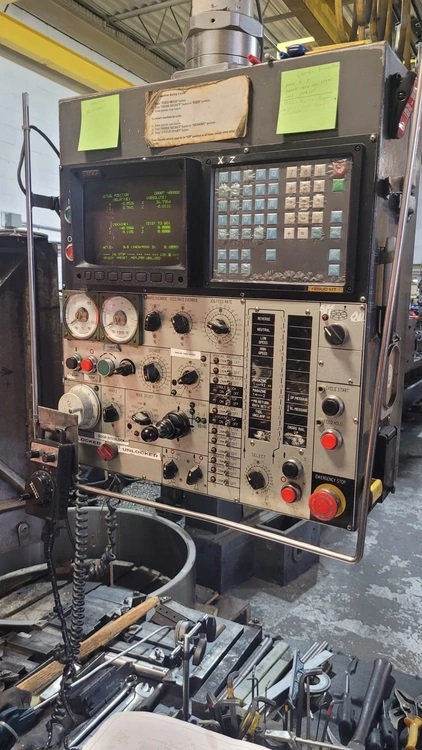

  • Fanuc CNC Control

  • 63" Table

  • 12-Position Automatic Tool Changer

  • Very Good Condition
