Mazak Power Master N 3000U

CNC Lathe
Price on Request
Back to Products
Machine Serviced & Checked

Fully inspected and maintained by certified technicians before delivery.

Shipping Across US Mainland

Fast and reliable transport options available within the continental USA.

12-Month Warranty

All machines come with a full one-year warranty, giving you added peace of mind and assurance that your investment is protected.

Best Price Direct from Owner

No resellers involved — you get the most competitive price straight from us.

Product Description

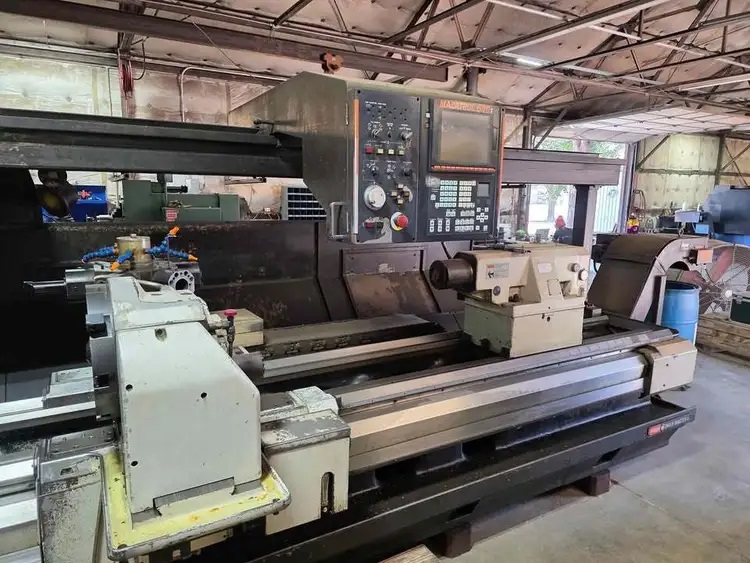

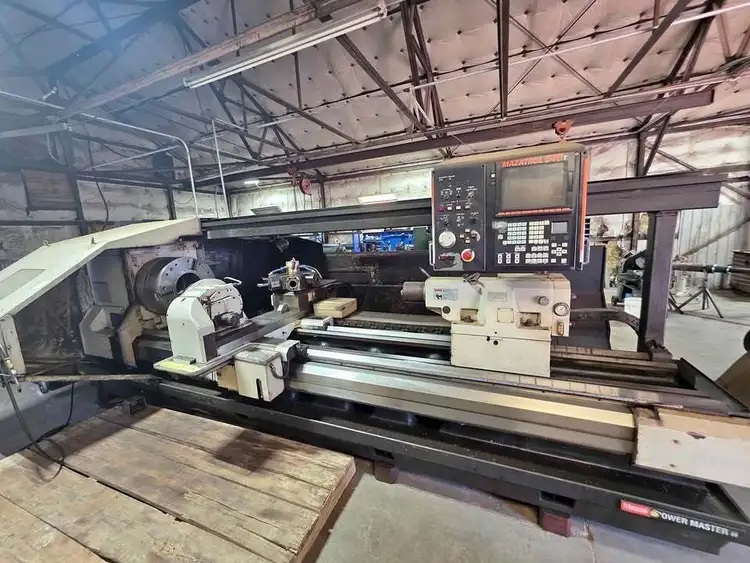

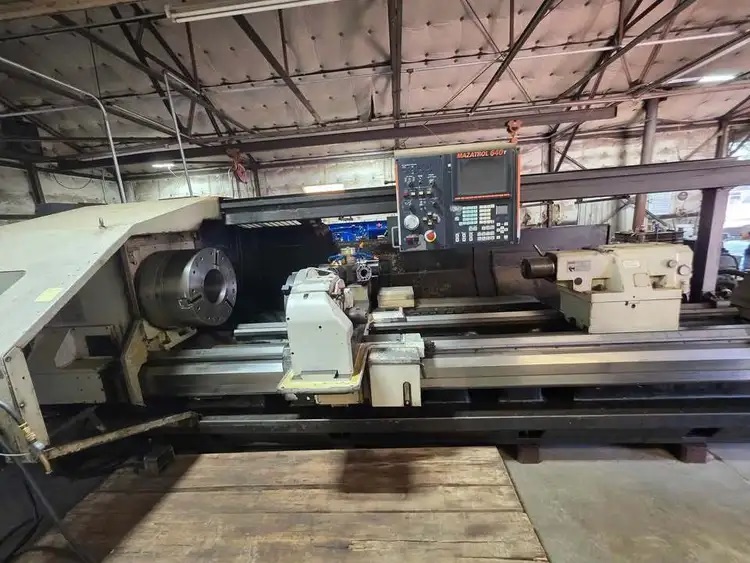

The Mazak Power Master N (3000U) is a robust, heavy-duty flat-bed CNC lathe engineered for large-diameter and long-length workpieces. With its 10.2" spindle bore, 24" front and rear air chucks, and 120" centers, this machine is built to handle demanding turning, boring, and heavy machining applications. Equipped with Mazatrol Fusion 640T CNC control, dual turret capability, and 60 HP spindle power, it delivers precision, flexibility, and reliability for large-part production.

Specifications

  • Year: 2005

  • Swing Over Bed: 34"

  • Swing Over Cross Slide: 21.65"

  • Distance Between Centers: 120" (122.5" max)

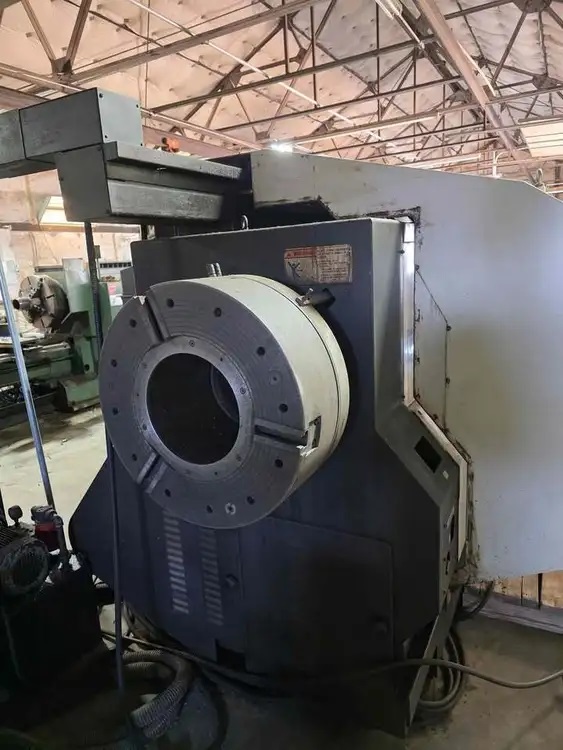

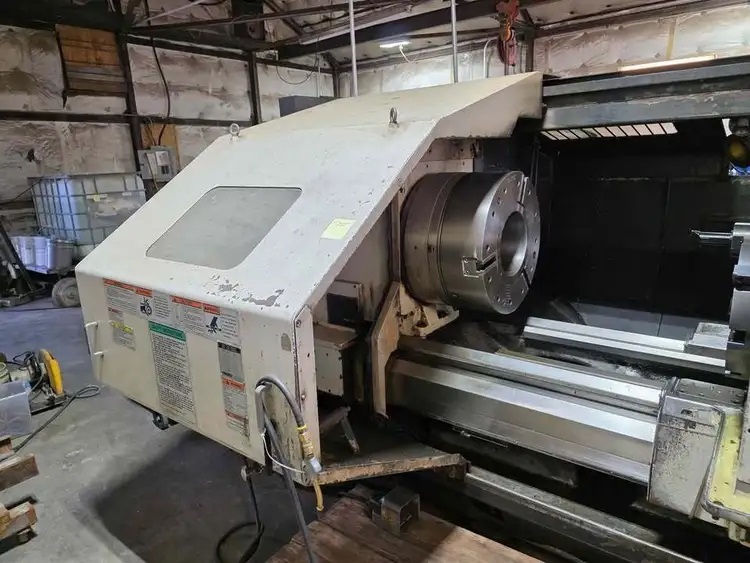

  • Chuck Size: 24" (front and rear air chucks)

  • Spindle Bore: 10.2"

  • Spindle Nose: A2-15

  • Spindle Speed: 2 – 750 RPM (4 ranges)

  • Spindle Motor: 40 / 60 HP (AC, continuous / 30 min)

  • Axes: 2

  • Maximum Machining Length: 123"

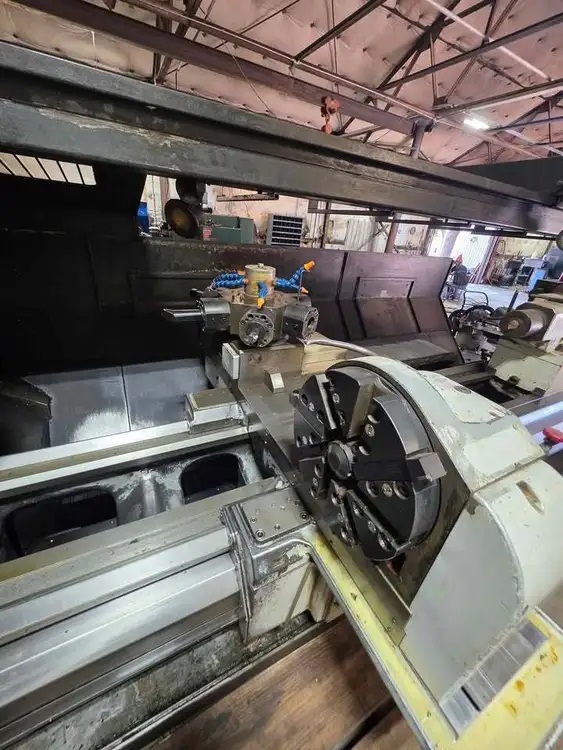

  • Turrets:

    • Front: 8-position vertical disk turret

    • Rear (optional): 6-position square/boring turret

Equipped With

  • Mazatrol Fusion 640T CNC Control

  • 24" Front SMW Big Bore Air Chuck

  • 24" Rear Air Chuck

  • 6-Position Rear Boring Turret

  • 10.2" Big Bore Spindle
