Haas GT-10 CNC Lathe

CNC Lathe
Price on Request
Back to Products
Machine Serviced & Checked

Fully inspected and maintained by certified technicians before delivery.

Shipping Across US Mainland

Fast and reliable transport options available within the continental USA.

12-Month Warranty

All machines come with a full one-year warranty, giving you added peace of mind and assurance that your investment is protected.

Best Price Direct from Owner

No resellers involved — you get the most competitive price straight from us.

Product Description

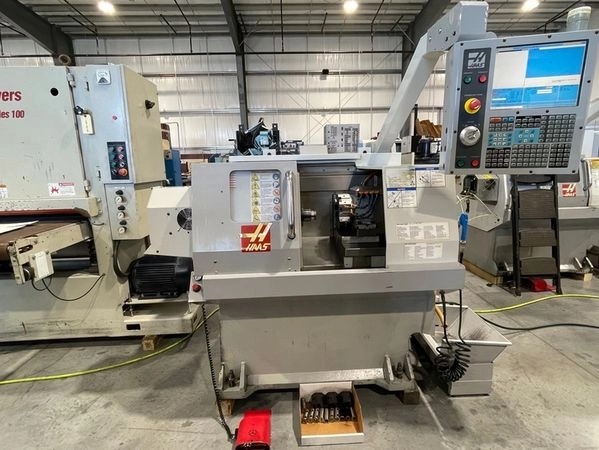

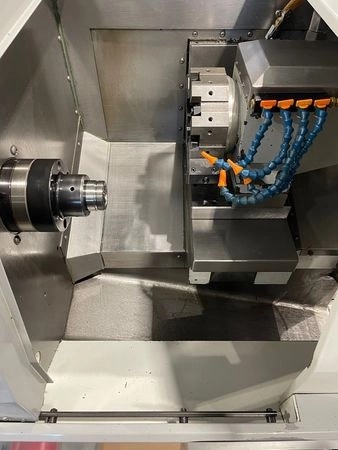

The Haas GT-10 is a compact, high-precision CNC turning center designed for small-part production and bar work. This pre-owned 2008 model has only 3,181 spindle hours, making it an excellent choice for shops looking for reliability with low-time usage.

Specifications

  • Swing Over Bed: 16.25"

  • Swing Over Cross Slide: 12.75"

  • Max. Cutting Diameter: 10"

  • Max. Cutting Length: 8"

  • X-Axis Travel: 6"

  • Z-Axis Travel: 8"

  • Spindle Speed: 3,000 RPM

  • Spindle Nose: A2-5

  • Spindle Bore: 1.38"

  • Main Motor: 7.5 HP Vector Drive

  • Turret: 8-Position

  • Machine Weight: 3,500 lbs

  • Machine Dimensions: 82" L x 85" W x 75" H

  • Electrical: 208–230V / 3Ph or 240V / 1Ph

Hours

  • Servo On Time: 9,869

  • Motion Time: 2,523

  • Spindle Time: 3,181

Equipped With

  • Haas CNC Control (Quick Code, DNC, M19 Spindle Orientation)

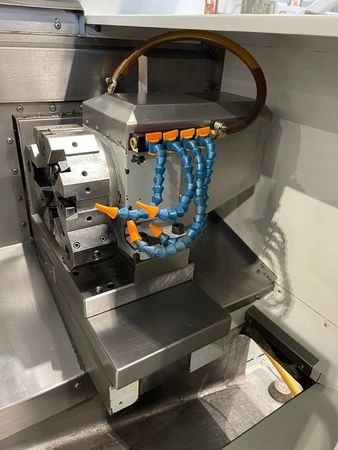

  • 8-Station Turret

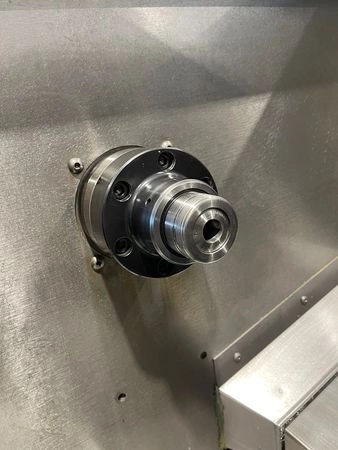

  • 5C Collet Chuck

  • Brushless Barfeeder Interface

  • Coolant Tank & Pump Assembly

  • (4) Leveling Pads

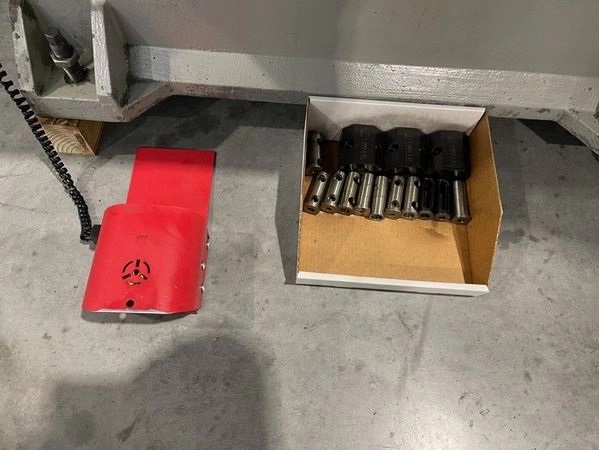

  • Miscellaneous Tool Holders
