RAS Model 62.30 TurboBend Plus CNC Folding Machine

Fabricating Machinery
Price on Request
Back to Products
Machine Serviced & Checked

Fully inspected and maintained by certified technicians before delivery.

Shipping Across US Mainland

Fast and reliable transport options available within the continental USA.

12-Month Warranty

All machines come with a full one-year warranty, giving you added peace of mind and assurance that your investment is protected.

Best Price Direct from Owner

No resellers involved — you get the most competitive price straight from us.

Product Description

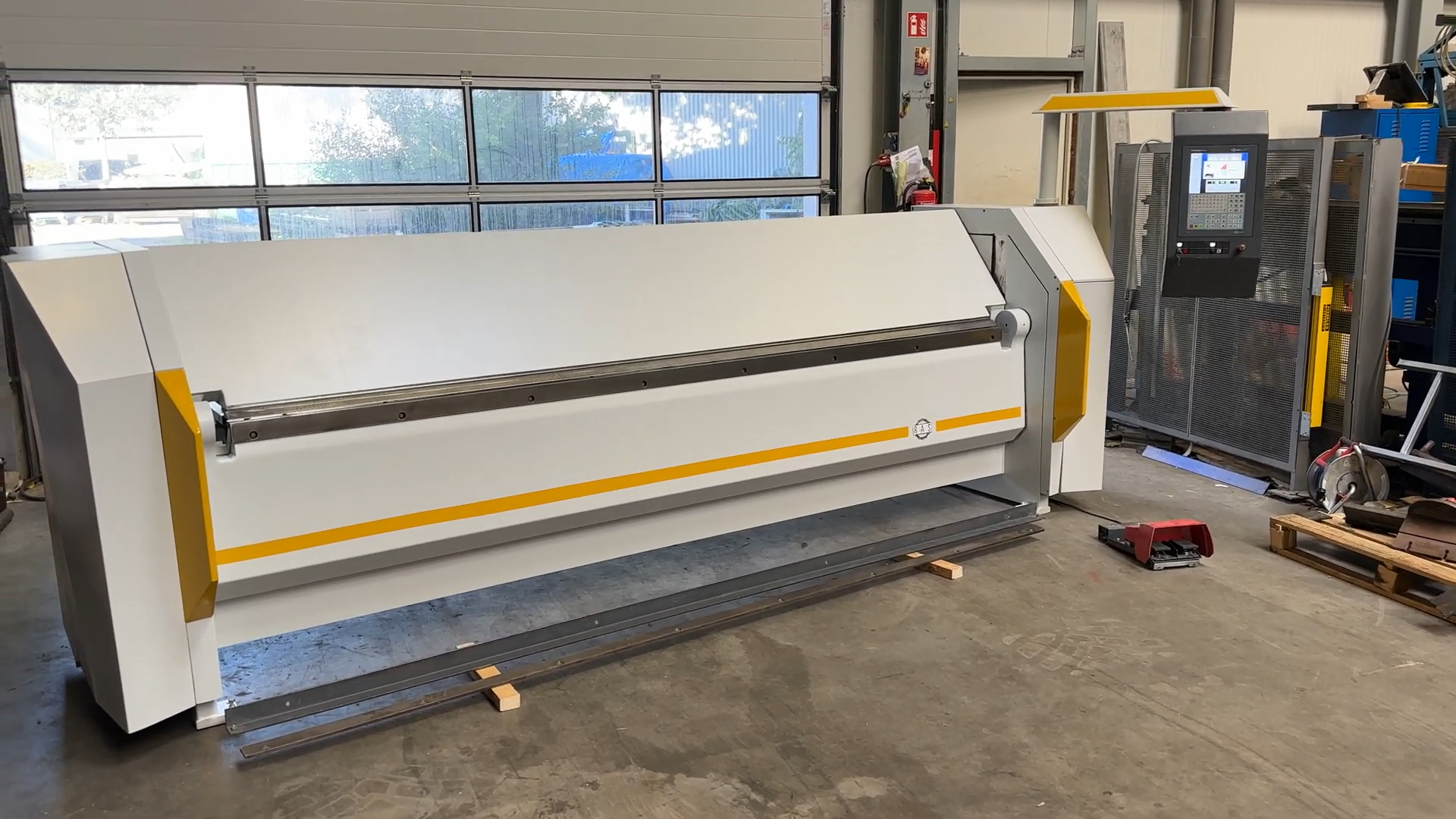

The RAS 62.30 TurboBend Plus is a heavy-duty CNC folding machine designed for precision sheet metal forming with maximum productivity and repeatability. Built for demanding fabrication environments, it combines robust construction with user-friendly CNC controls for efficient operation.

Technical Specifications:

  • Year: 2016

  • Maximum Sheet Thickness (Mild Steel): 14 ga

  • Working Length: 125"

  • Depth Stop Measuring Range: 0.24" – 61"

  • Upper Beam Open Height: 7.87"

  • Folding Beam Adjustment: 0.2"

  • Working Height: 33.5"

  • Speeds:

    • Upper Beam: 1 IPS

    • Folding Beam: 80°/sec

  • Machine Weight: 7,720 lbs
