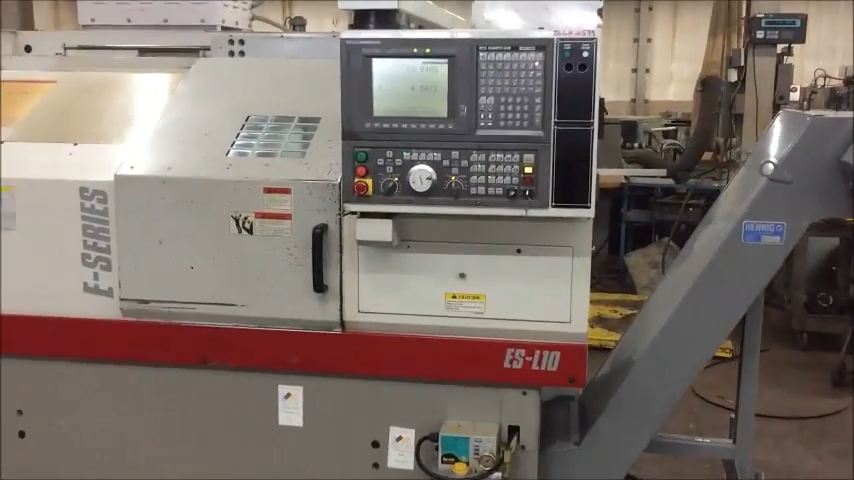

Okuma ES-L10 2-Axis CNC

CNC Lathe
Price on Request
Back to Products
Machine Serviced & Checked

Fully inspected and maintained by certified technicians before delivery.

Shipping Across US Mainland

Fast and reliable transport options available within the continental USA.

12-Month Warranty

All machines come with a full one-year warranty, giving you added peace of mind and assurance that your investment is protected.

Best Price Direct from Owner

No resellers involved — you get the most competitive price straight from us.

Product Description

Compact, rigid 2-axis production lathe from Okuma’s ES series. The ES-L10 pairs a stout A2-8 spindle with fast rapids and a 12-station turret—ideal for general turning, shafts, and flange work. Includes OSP-U10L control, chip management, and tailstock for long parts.

Specifications

  • Model: ES-L10

  • Year: 2003

  • Controlled Axes: 2 (X/Z)

  • Swing Over Bed / Carriage / Cross Slide: 20.47" / 17.72" / 11.81"

  • Max Turning Diameter / Length: 12.20" / 19.68"

  • Spindle Speed Range: 75–3000 RPM

  • Spindle Nose / Bore / Thru-Hole: JIS A2-8 / 4.72" dia / 3.15" bore

  • X-Travel: 6.10" + 2.56" (overtravel) • Rapid: 590.55 IPM

  • Z-Travel: 20.47" • Rapid: 787.40 IPM

  • Feeds (per rev): 0.00004 – 39.37 in/rev

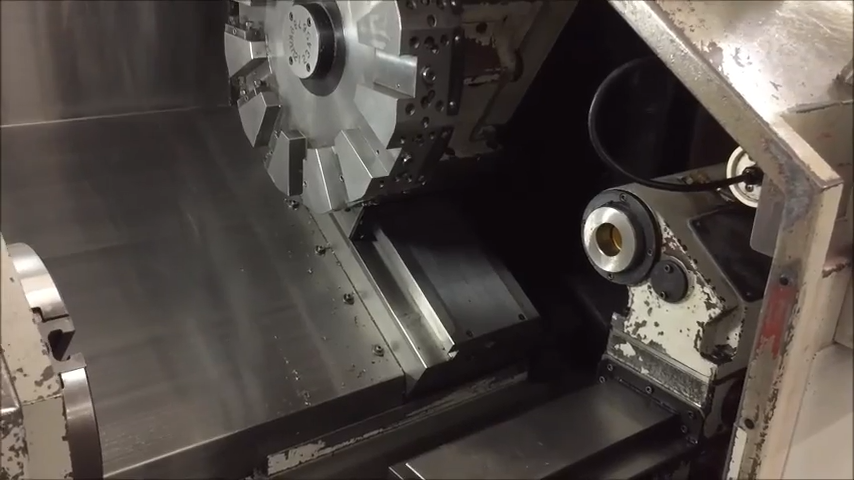

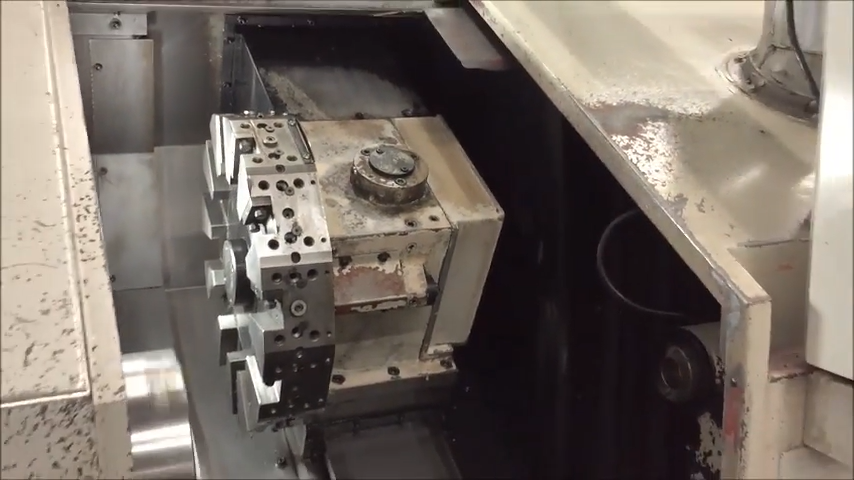

  • Turret: Type V, 12 stations

  • Tailstock: #5 MT quill, 3.94" travel

  • Floor Space (approx.): 90" × 78" • Weight (approx.): 8,377 lb

  • Main Motor: 20 HP • Electrical: 208V / 3-Phase / 60 Hz

Equipped With

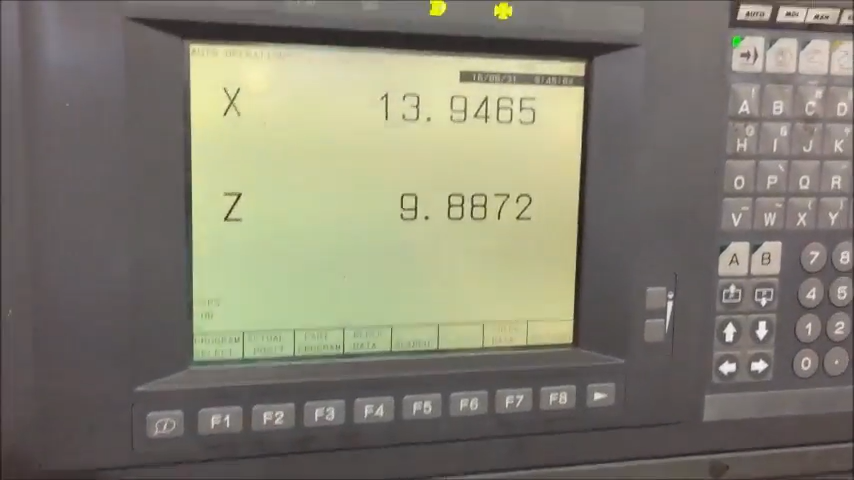

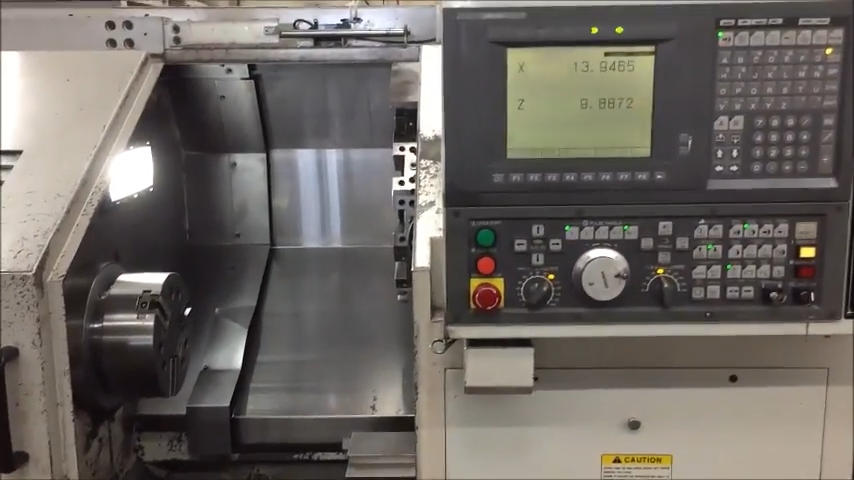

  • Okuma OSP-U10L CNC control

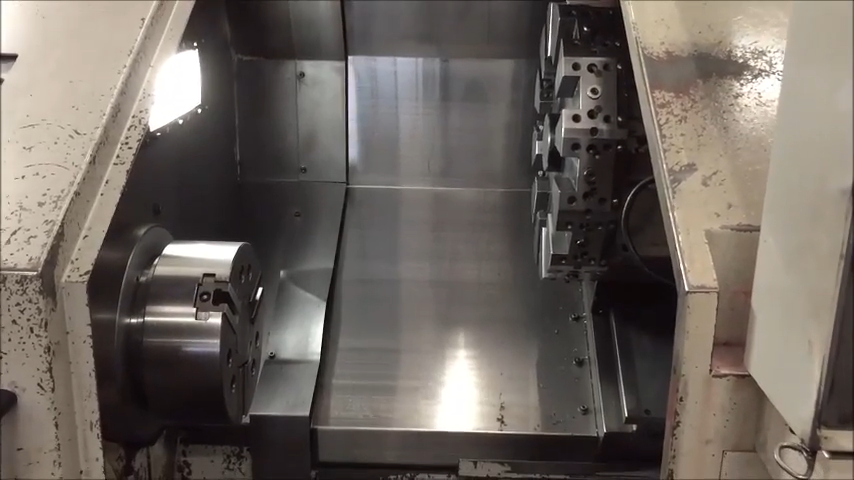

  • 10" 3-jaw hydraulic chuck

  • Chip conveyor & coolant system

  • Tailstock for shaft work

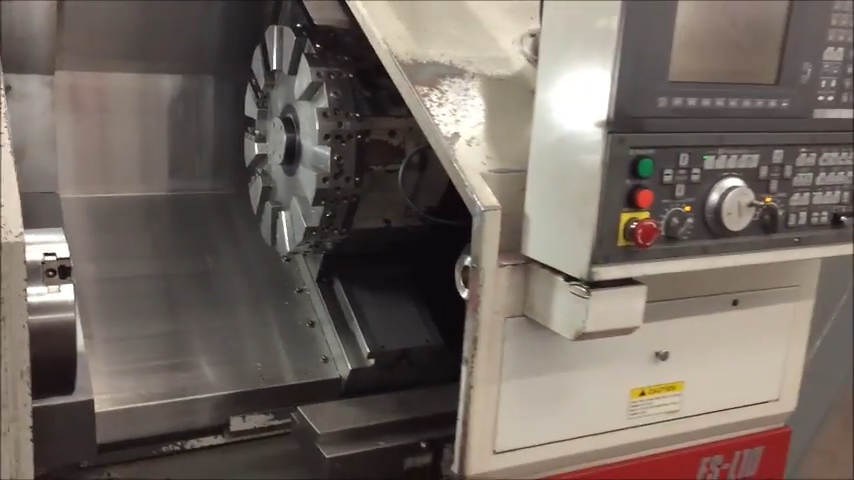

  • 12-position NC turret with misc. toolholders

  • Loadable media: Floppy disks for System, LNC, MAC-MAN & PLC custom packages; OSP software management data card

  • Manuals included

Condition Clean, fully equipped ES-L10 with chuck, tailstock, conveyor, and documentation.
