Accurshear Model 613510

Fabricating Machinery
Price on Request
Back to Products
Machine Serviced & Checked

Fully inspected and maintained by certified technicians before delivery.

Shipping Across US Mainland

Fast and reliable transport options available within the continental USA.

12-Month Warranty

All machines come with a full one-year warranty, giving you added peace of mind and assurance that your investment is protected.

Best Price Direct from Owner

No resellers involved — you get the most competitive price straight from us.

Product Description

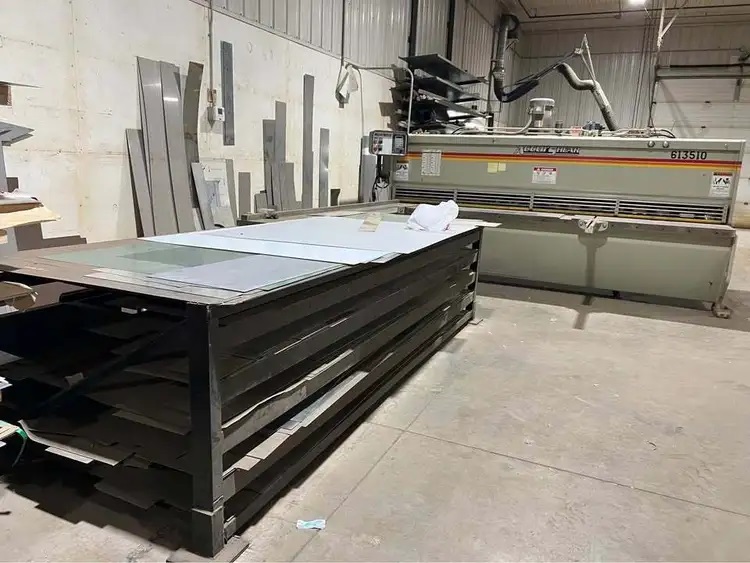

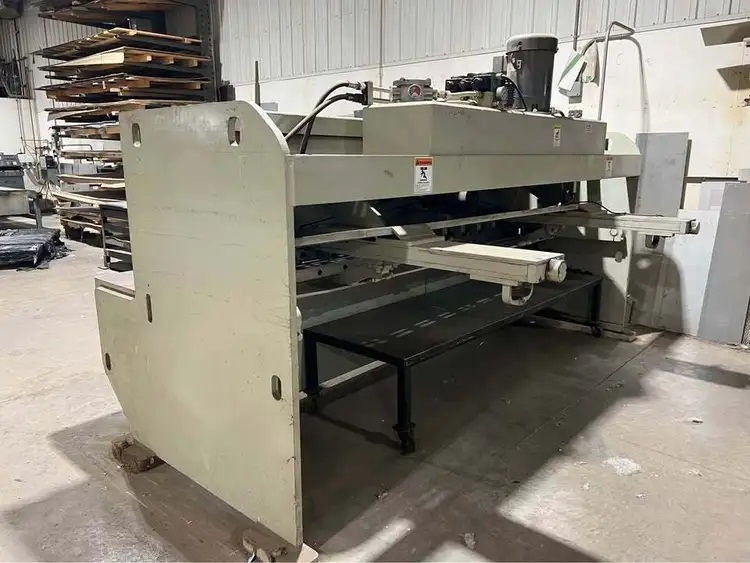

he Accurshear 613510 is a precision hydraulic power squaring shear designed for dependable, high-accuracy sheet metal cutting. Built for industrial fabrication, it combines robust construction with user-friendly controls, offering smooth hydraulic operation and consistent cut quality across its full 10′ cutting length. The machine includes a front-operated power back gauge with digital readout for fast and precise adjustments, ensuring efficiency in production environments.

Specifications:

  • Manufacturer: Accurshear

  • Model: 613510

  • Year: 2003

  • Type: Hydraulic Power Squaring Shear

  • Maximum Cutting Thickness (Mild Steel): 10 Gauge

  • Cutting Length: 10′

  • Blade Length: 10′

  • Number of Hold Downs: 16

  • Back Gauge Range: 24″ (front operated, power)

  • Motor Power: 10 HP

  • Electrical: 230V / 3Ph / 60Hz

  • Construction: Hydraulic

  • Approx. Weight: 10,000 lbs (typical)

Equipped With:

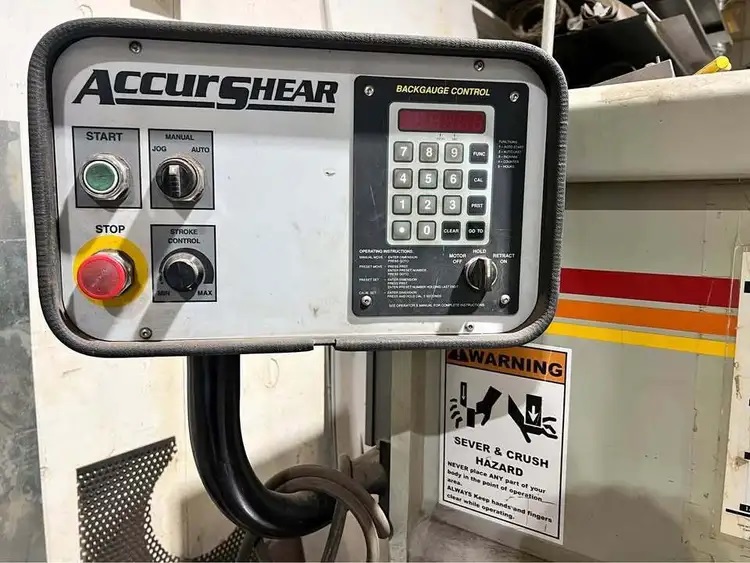

  • 24″ Front Operated Power Back Gauge with readout

  • Squaring Arm and Front Support Arm

  • Jog / Manual / Automatic operating modes

  • Stroke Control for fine cutting adjustment

  • Rugged hydraulic hold-down system for secure sheet positioning

  • Heavy-duty fabricated steel frame for long service life

Condition: Excellent working condition. Fully functional and ready for operation.
