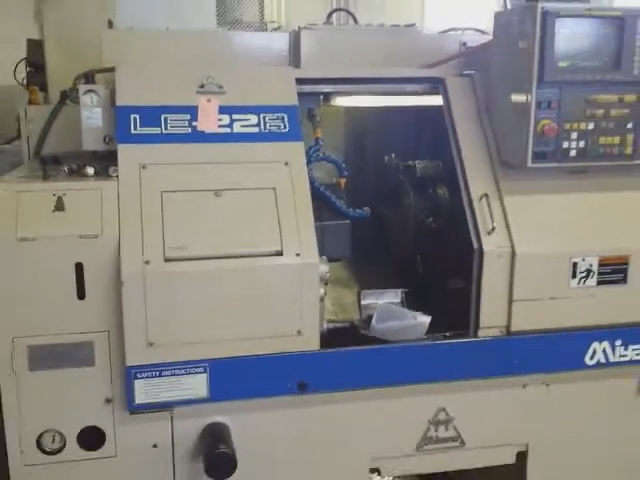

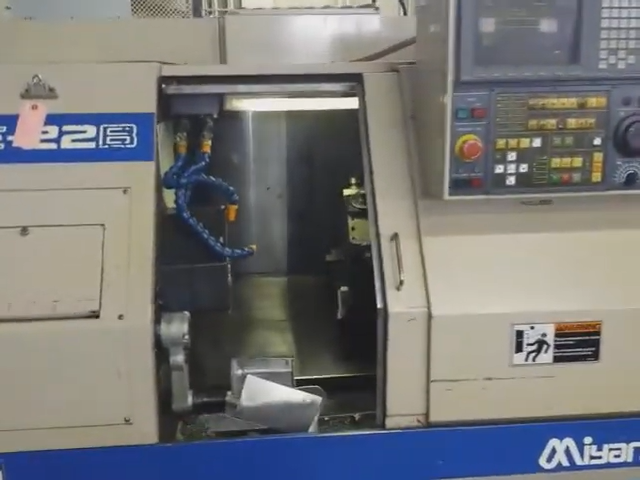

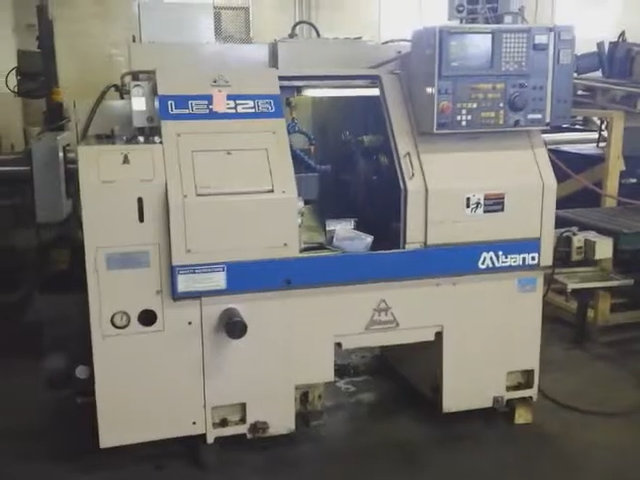

Miyano LE-22B CNC Turning Center

CNC Lathe

Price on Request

Back to Products

Machine Serviced & Checked

Fully inspected and maintained by certified technicians before delivery.

Shipping Across US Mainland

Fast and reliable transport options available within the continental USA.

12-Month Warranty

All machines come with a full one-year warranty, giving you added peace of mind and assurance that your investment is protected.

Best Price Direct from Owner

No resellers involved — you get the most competitive price straight from us.

Product Description

Description Compact, production-ready CNC lathe with live tooling and C-axis spindle orientation for on-center milling/drilling. The LE-22B pairs a high-speed 4,000 RPM spindle with a 12-station turret and a Spego Turnmatic 126H-16 bar feeder for unattended runs. Ideal for small-to-medium shafts, fittings, and complex turned parts.

Specifications

Year / Model: 1995 Miyano LE-22B

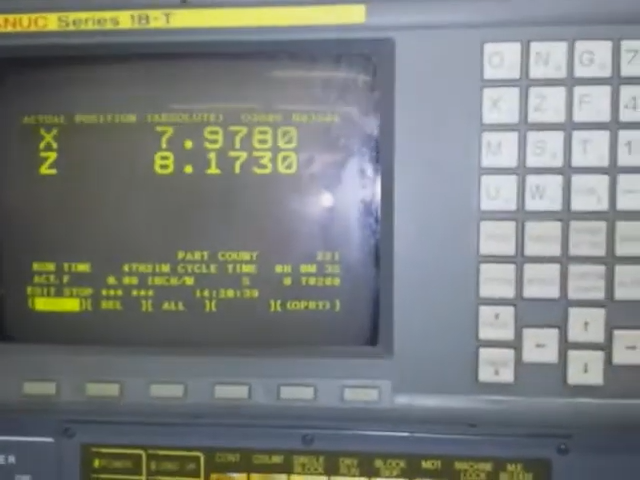

Control: Fanuc 18-T
Swing Over Bed: 13.75″
Bar Capacity: 2″ (collet)
Max Turning Length: 12″
Spindle Speed: 25–4,000 RPM
Spindle Motor: 25 HP

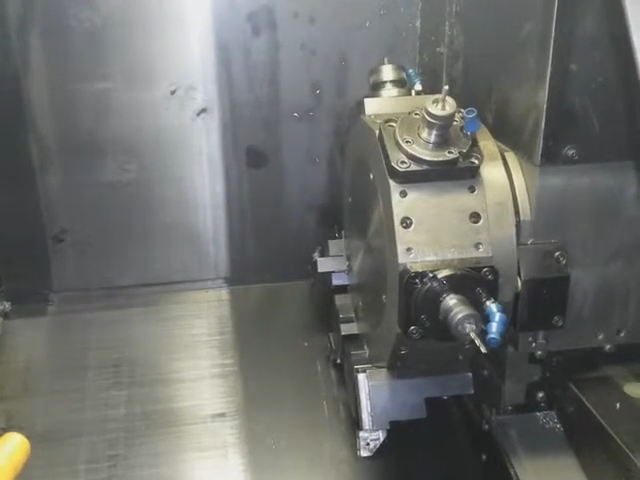

Turret: 12 stations, live tooling • Index time 0.4 sec
Axes: X = 6.5″ • Z = 13.75″ • C-axis spindle orientation
Electrical: 208V, 3-phase, 60 Hz
Machine Size / Weight (approx.): 84″ × 58″ × 66″ H • 8,000 lb

Equipped With

Fanuc 18-T CNC control

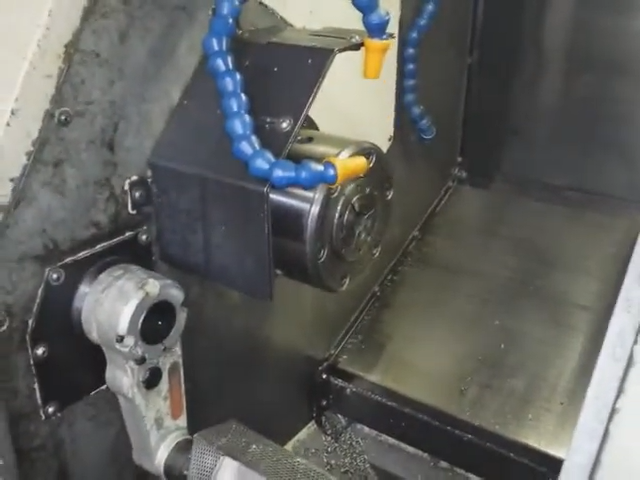

2″ capacity collet chuck (12″ 3-jaw not specified; collet workholding included)
Parts catcher and parts conveyor
Spego Turnmatic 126H-16 bar feeder
Misc. tooling: collets and (5) live tool holders
Inch/Metric threading, Constant Surface Speed (CSS)
Electronic handwheels with rapid jog & spindle controls
Teach mode, coolant tank & pump, slide-out chip pans
Machine manuals

Highlights

Live-tool capable turret + C-axis orientation for drilling/tapping and light milling on-center
2″ bar capacity with bar feeder for lights-out productivity
Fast turret index and responsive Fanuc control for short cycle times
