Tormach 770M CNC Mill

Fabricating Machinery
Price on Request
Back to Products
Machine Serviced & Checked

Fully inspected and maintained by certified technicians before delivery.

Shipping Across US Mainland

Fast and reliable transport options available within the continental USA.

12-Month Warranty

All machines come with a full one-year warranty, giving you added peace of mind and assurance that your investment is protected.

Best Price Direct from Owner

No resellers involved — you get the most competitive price straight from us.

Product Description

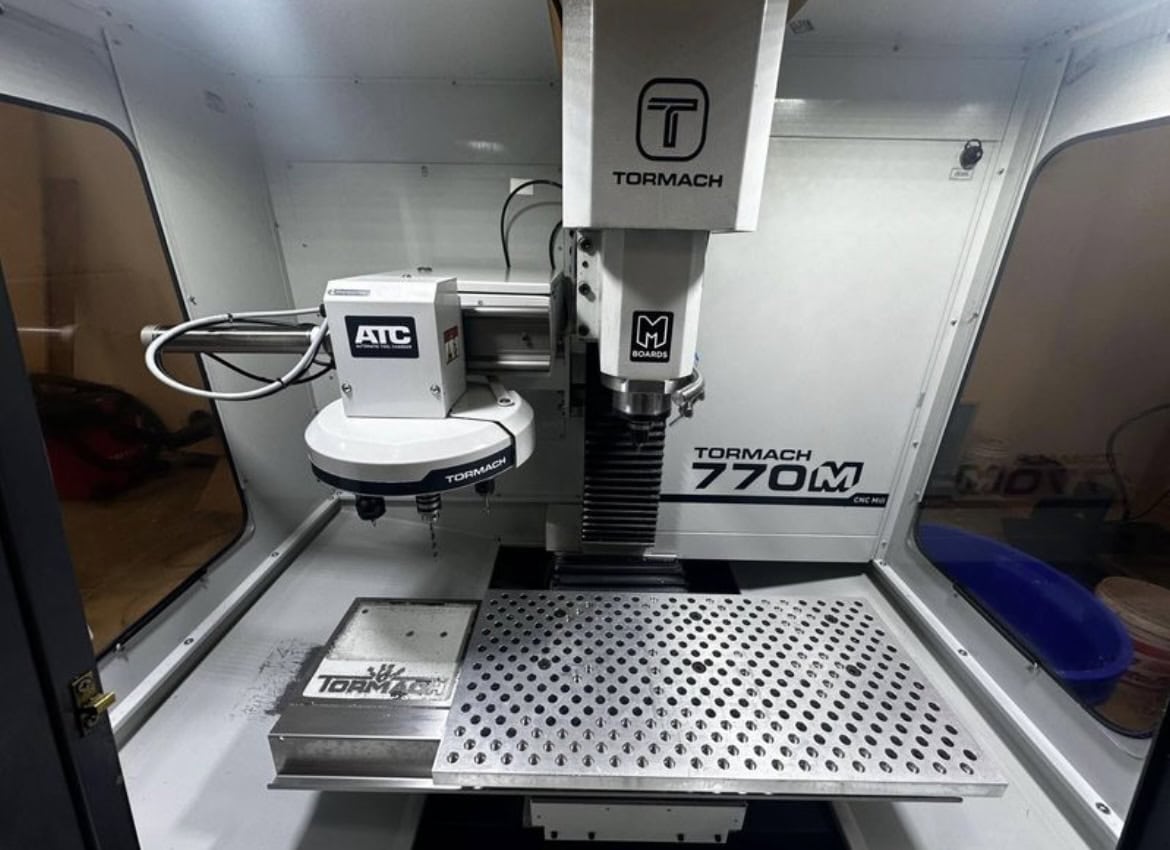

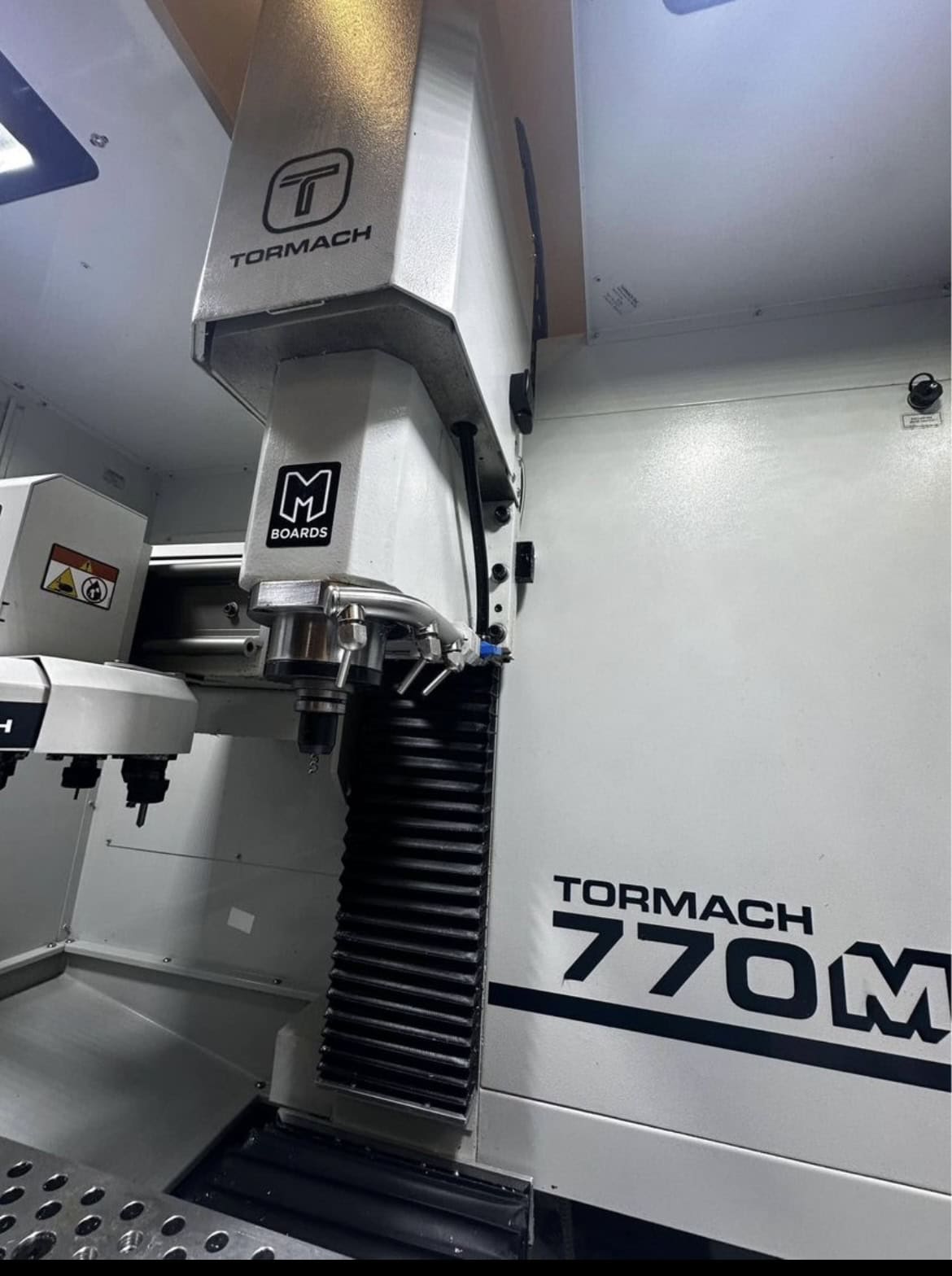

This late-model Tormach 770M represents an excellent opportunity to acquire a near-new precision CNC mill with an extensive tooling package and upgrades. Featuring the robust PathPilot control, automatic tool changer, and precision Saunders fixture plate, this setup is ready for immediate production or prototyping.

With its compact footprint, 10,000-rpm R8 spindle, and plug-and-play 115V operation, the 770M delivers professional CNC capability in a workshop-friendly format. Ideal for toolrooms, R&D departments, small-batch production, and advanced hobbyist applications.

Manufacturer: Tormach Inc. Model: 770M Year: 2022 Condition: Excellent – low-hour machine Technical Specifications

  • X-Axis Travel: 14" (355 mm)

  • Y-Axis Travel: 7.5" (190 mm)

  • Z-Axis Travel: 13.25" (337 mm)

  • Spindle Power: 1.5 HP

  • Maximum Spindle Speed: 10,000 rpm

  • Spindle Taper: R8

  • Feed Rate (X/Y): 135 IPM

  • Feed Rate (Z): 110 IPM

  • Table Size: 26" × 8" (660 × 203 mm)

  • Maximum Table Load: 500 lbs (227 kg)

  • T-Slots: 3 × 5/8"

  • Spindle Nose to Table: 14.25"

  • Spindle Center to Column: 8.6"

  • Machine Footprint: 56" L × 48.5" W × 88" H

  • Machine Weight: 950 lbs (431 kg)

  • Electrical Requirements: 115V, single-phase

Equipped With

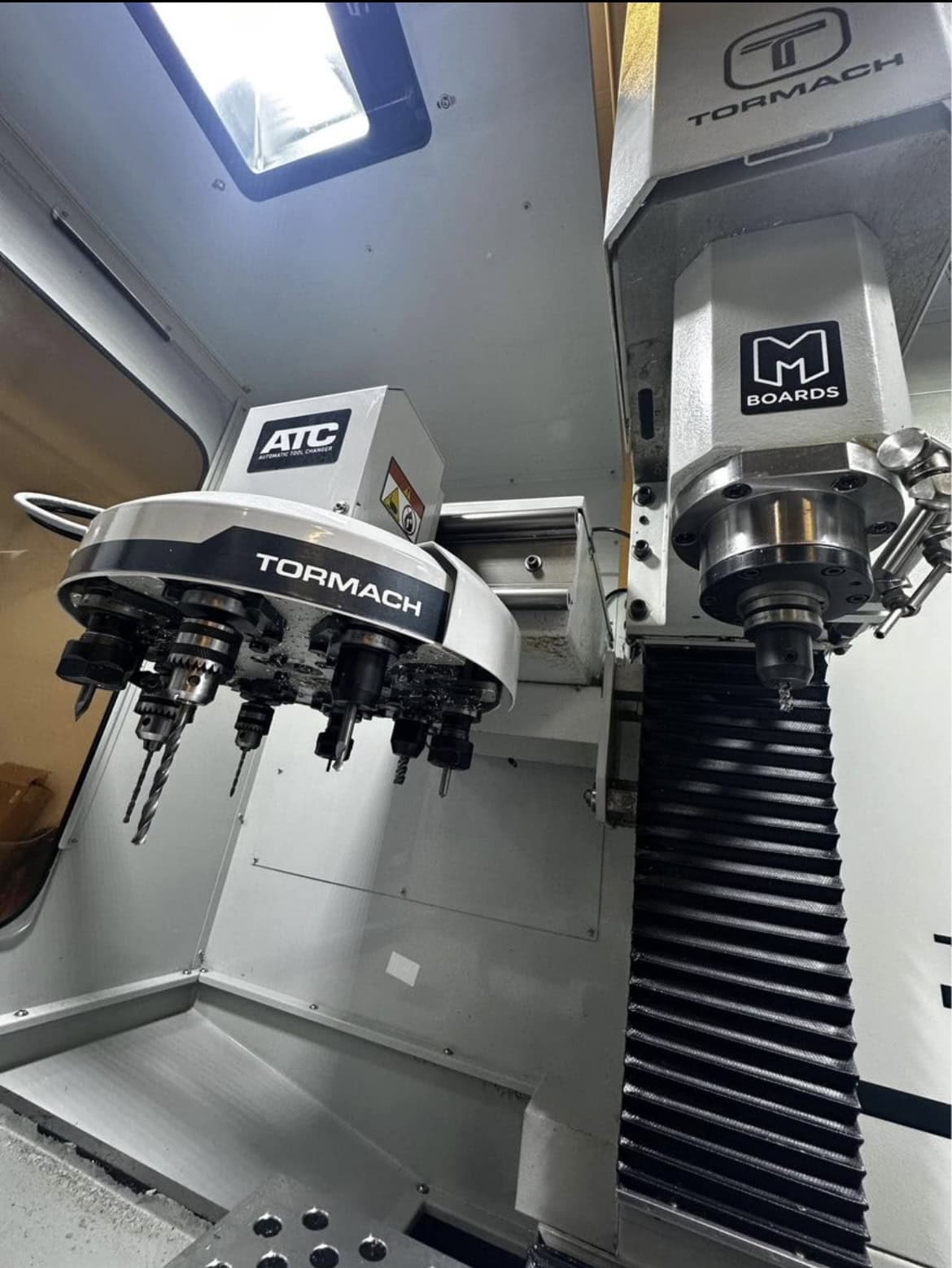

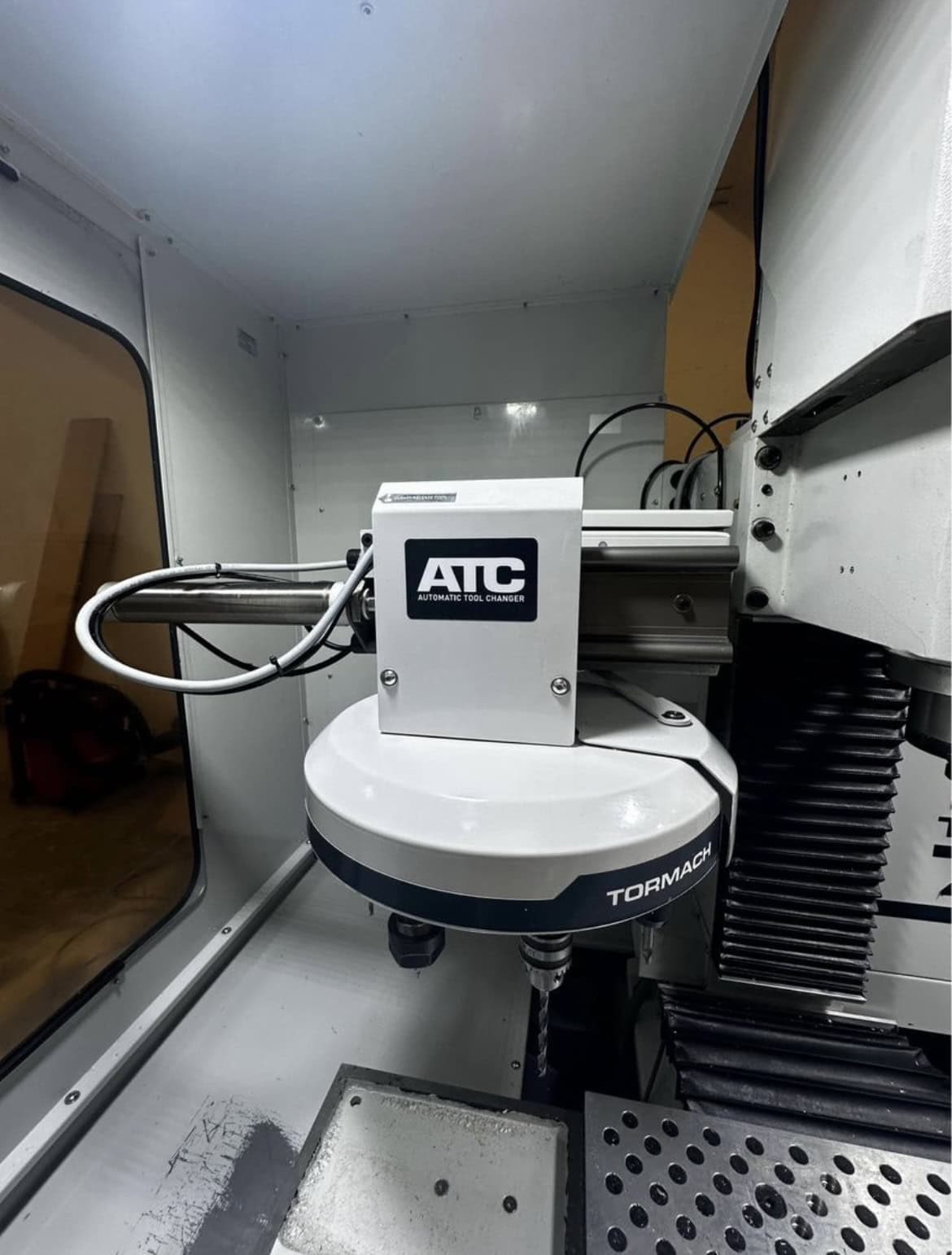

  • 10-Pocket Automatic Tool Changer (ATC)

  • PathPilot control computer

  • Machine lift kit

  • Saunders Machine Works precision fixture plate

  • 2.5" fly cutter

  • Haimer 3D edge finisher / probe

  • Coolant tank & pump system

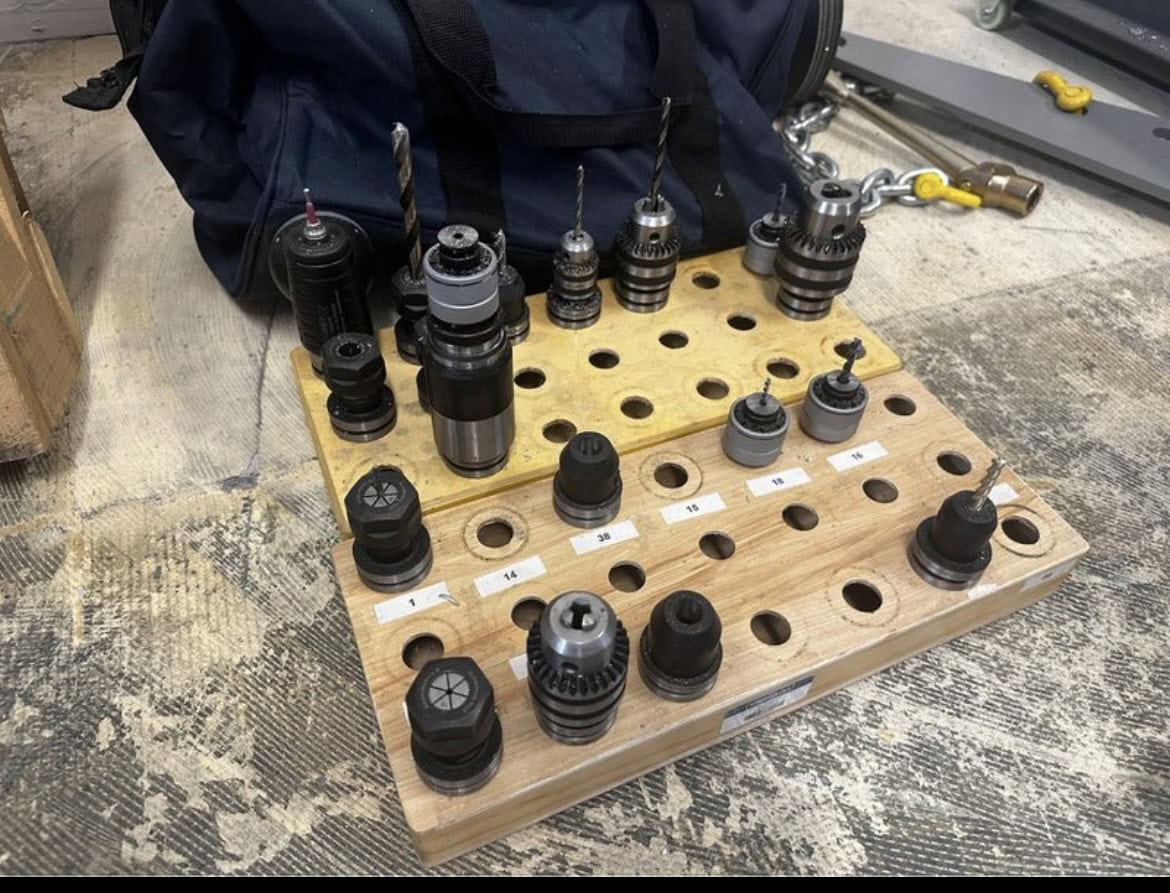

  • Comprehensive tooling package – 20+ tool holders included

  • Tool organizer and accessories
