Doosan Puma MX2500ST

CNC Lathe
Price on Request
Back to Products
Machine Serviced & Checked

Fully inspected and maintained by certified technicians before delivery.

Shipping Across US Mainland

Fast and reliable transport options available within the continental USA.

12-Month Warranty

All machines come with a full one-year warranty, giving you added peace of mind and assurance that your investment is protected.

Best Price Direct from Owner

No resellers involved — you get the most competitive price straight from us.

Product Description

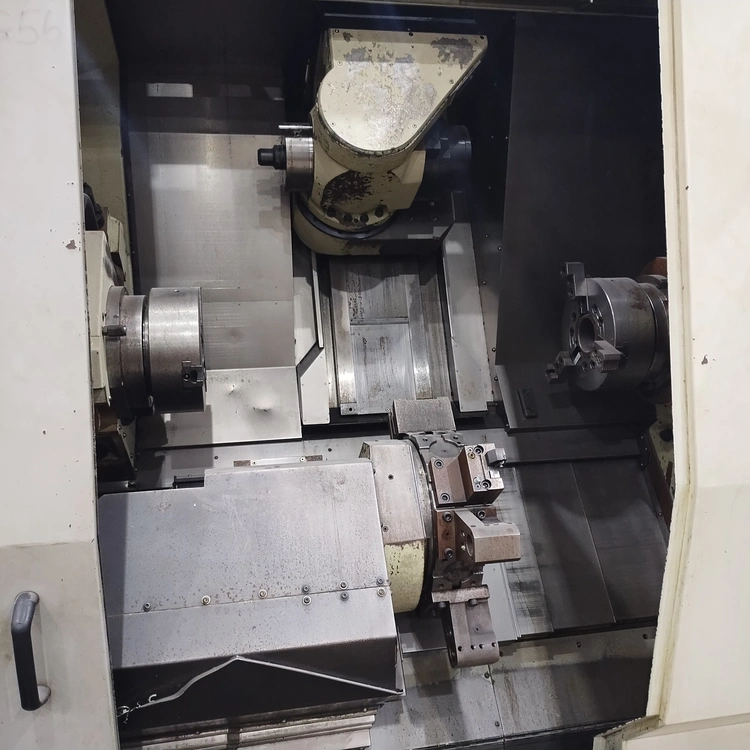

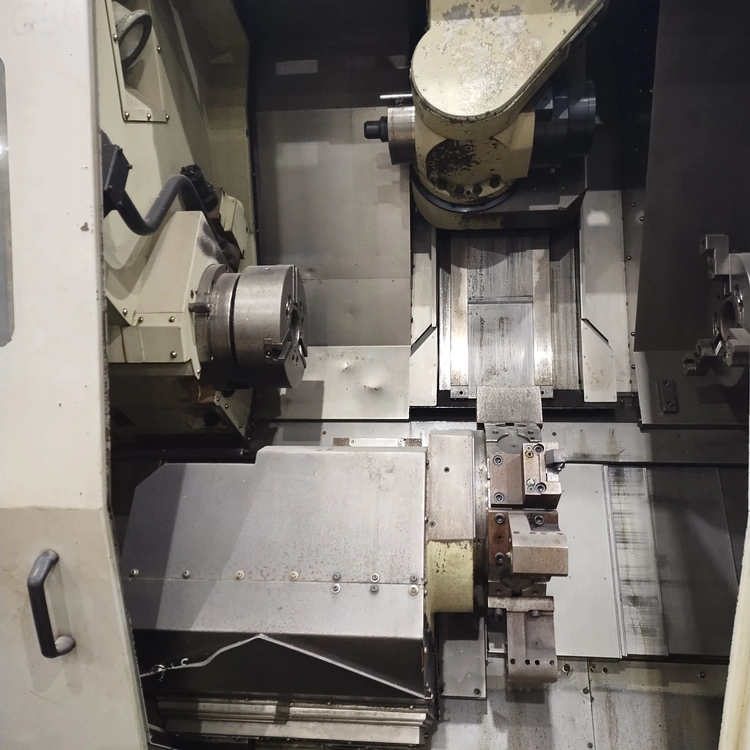

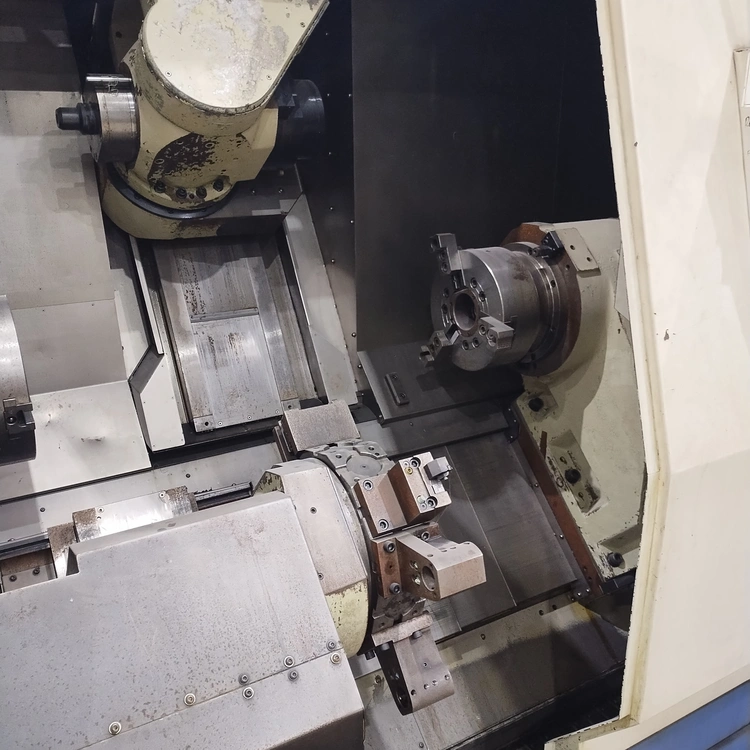

The Doosan (Daewoo) Puma MX2500ST is a powerful multi-tasking CNC turning center designed for complex machining in a single setup. With dual spindles, B-axis milling capability, a lower turret, and a 40-position automatic tool changer, this machine combines the functionality of a lathe and a machining center—delivering flexibility, precision, and high productivity.

Key Specifications

  • Year: 2005

  • Axes: 8 (with B-axis milling)

  • Swing: 29.52"

  • Max. Turning Diameter (Upper Turret): 23.6"

  • Max. Turning Length: 59.9"

  • Machining Length: 40.15"

  • Chuck Size: 10" (3-jaw chucks on both spindles)

  • Bar Capacity: 3.4"

  • Spindle Bore: 3.89" (A2-8 both spindles)

  • Main Spindle Speed: up to 5,000 rpm

  • Sub Spindle Speed: up to 5,000 rpm

  • Milling Spindle Speed: up to 10,000 rpm (B-axis, indexable to 0.001°)

  • Tool Changer: 40-position ATC

  • Lower Turret Capacity: 12 stations

  • Rapid Traverse Rates:

    • X-axis: 787 ipm

    • Z-axis: 1,574 ipm

    • Y-axis: 16 m/min

    • A-axis: 24 m/min

  • Main Drive Motor: 15 HP

Equipped With

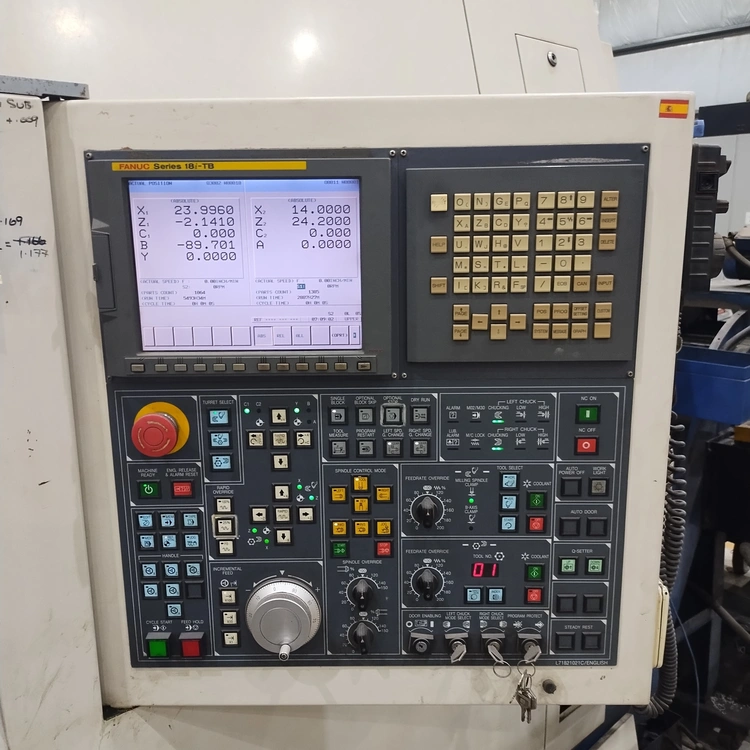

  • Fanuc 18iTB CNC Control

  • Live Tooling

  • Dual 3-Jaw Chucks (main & sub spindle)

  • B-Axis Milling Spindle

  • 40-Position Automatic Tool Changer

  • 12-Station Lower Turret

  • Rigid Tapping
