Sunnen SV-1010 Vertical Hone

Machine Tools
Price on Request
Back to Products
Machine Serviced & Checked

Fully inspected and maintained by certified technicians before delivery.

Shipping Across US Mainland

Fast and reliable transport options available within the continental USA.

12-Month Warranty

All machines come with a full one-year warranty, giving you added peace of mind and assurance that your investment is protected.

Best Price Direct from Owner

No resellers involved — you get the most competitive price straight from us.

Product Description

The Sunnen SV-1010 is a precision-engineered single spindle CNC vertical honing machine designed for high-accuracy bore sizing, surface finishing, and geometry correction. With its advanced feed system, diamond tooling, and robust build, it provides exceptional consistency for production or job-shop applications.

Specifications

  • Year: 2011

  • Model: SV-1010 CNC Vertical Hone

  • Stroke Travel: up to 24.8"

  • Spindle Speed Range: 100 – 4,000 RPM

  • Stroke Speed Range: 40 – 400 SPM

  • Spindle Power: 7.5 HP

  • Stroking System Power: 10 HP

  • Feed: CNC-controlled linear feed with abrasive load-sensing technology

  • Machine Weight: 4,750 lbs

  • Shipping Dimensions: 64" L x 74" W x 104" H

  • Electrics: 400 / 460V, 3Ph, 60Hz

Construction

  • Heavy-duty cast iron columns on a cast composite base for rigidity and vibration dampening.

Equipped With

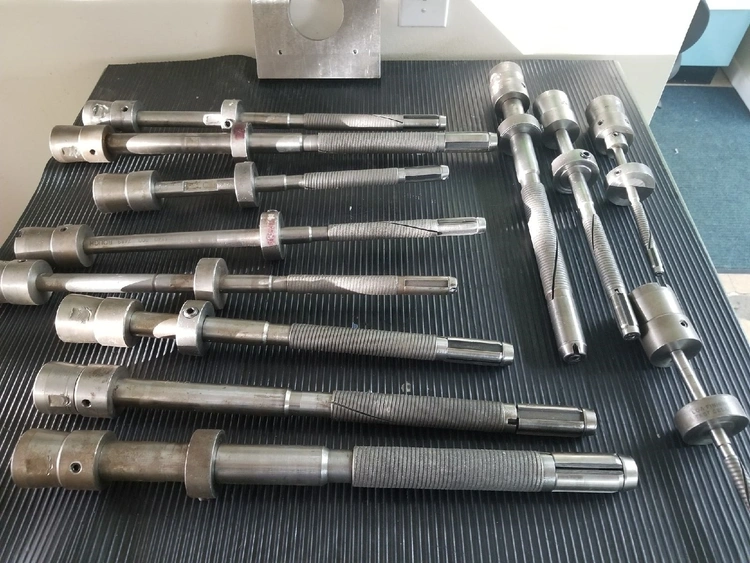

  • Miscellaneous Diamond Tooling

  • Rear-Mounted Coolant System (48" x 57" x 42")
