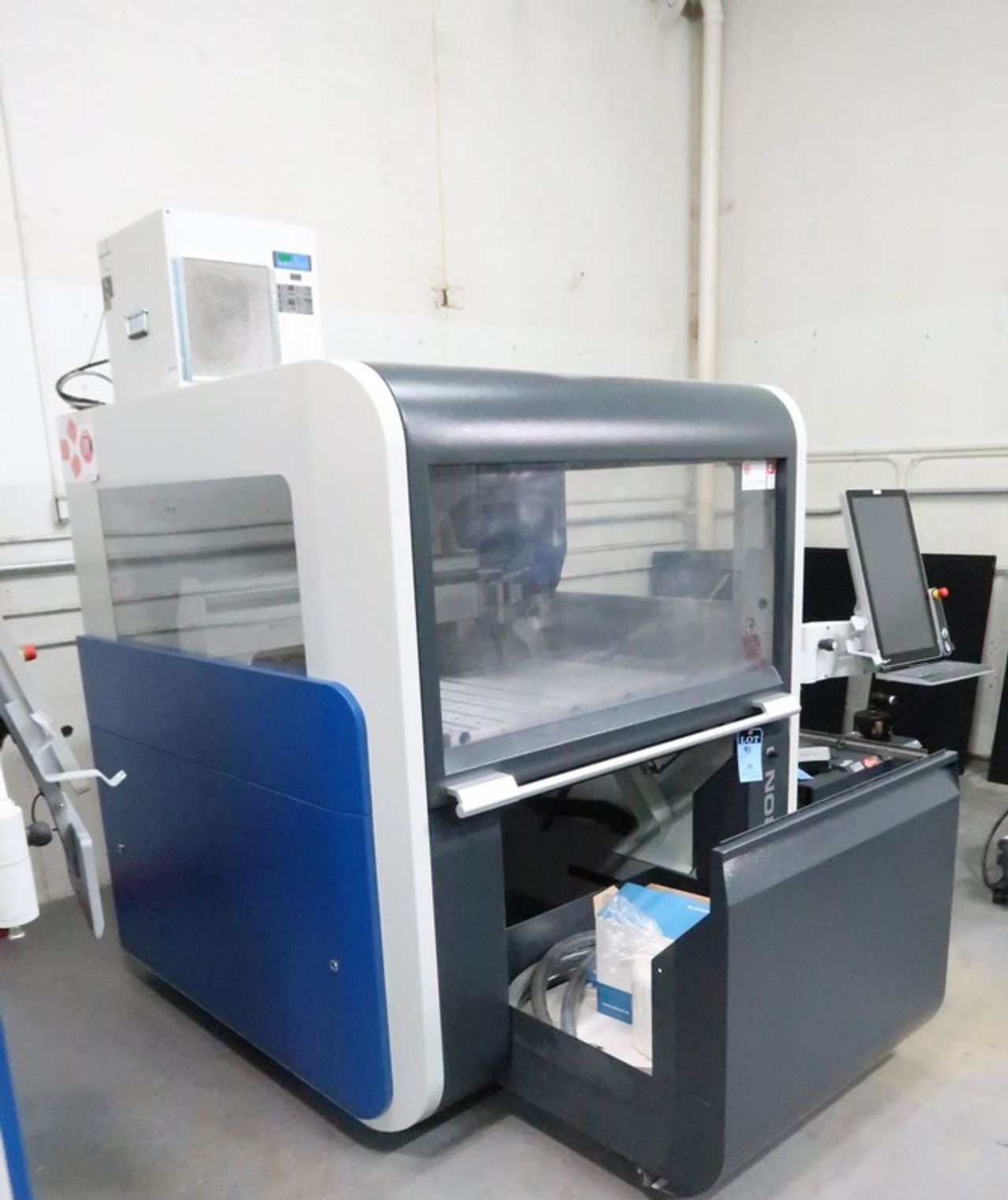

High-precision HSC (High-Speed Cutting) milling machine designed for exceptional surface quality, accuracy, and efficiency in aluminum, composite, and plastic machining. The Datron M8Cube B combines advanced German engineering with a large working area, fast dynamics, and high spindle speeds up to 40,000 RPM, making it ideal for precision prototyping, mold production, and small-series manufacturing.

Technical Specifications

• Manufacturer: Datron

• Model: M8Cube B

• Year: 2020

• Type: High-Speed CNC Milling Machine

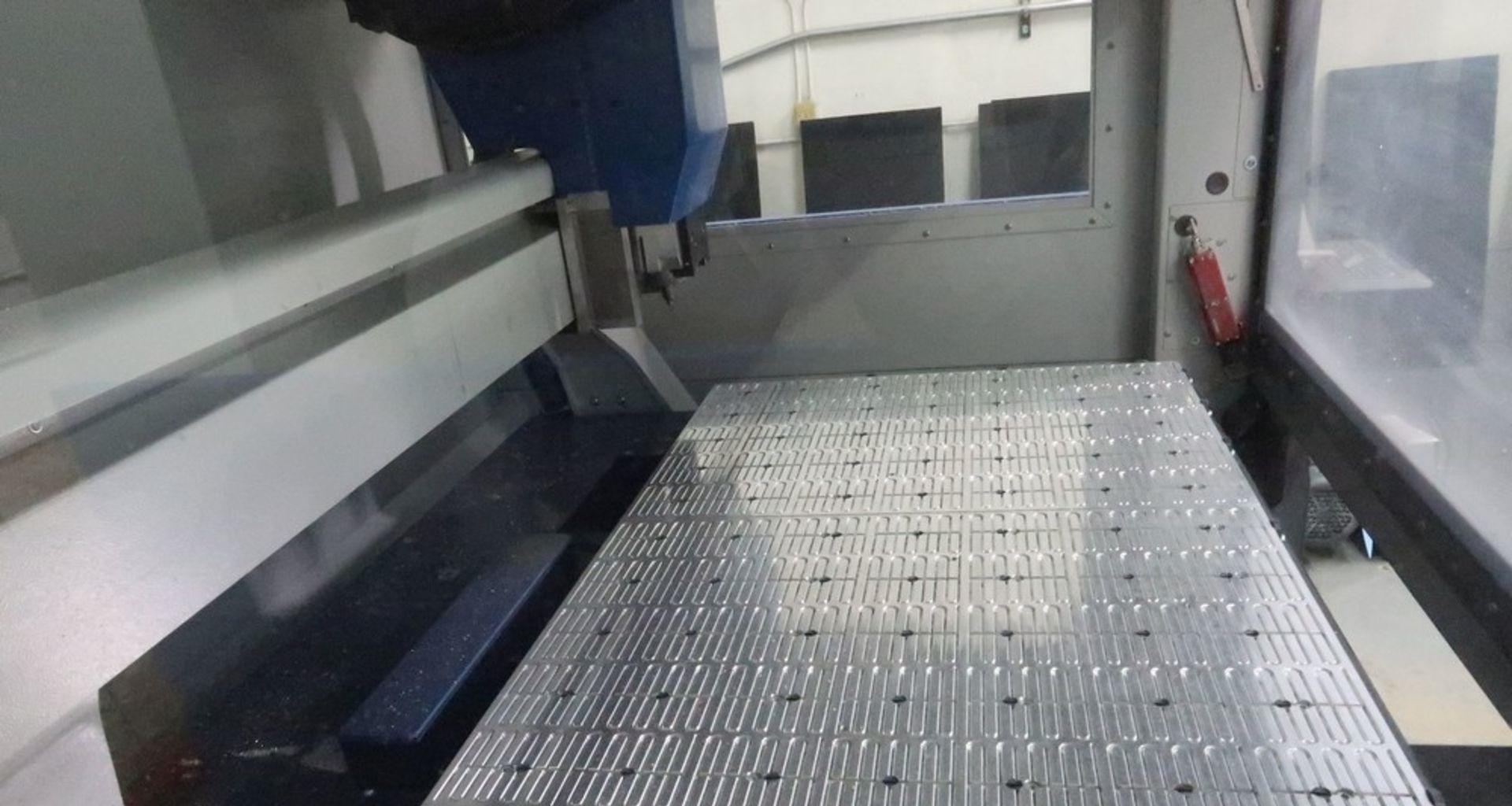

• Table Size: 40″ × 28″ (approx. 1,020 mm × 720 mm)

• X-Axis Travel: 1,020 mm

• Y-Axis Travel: 830 mm

• Z-Axis Travel: 245 mm

• Spindle Speed Range: 1,000 – 40,000 RPM

• Spindle Interface: HSK-E25 collet chuck

• Tool Magazine: Integrated automatic tool changer

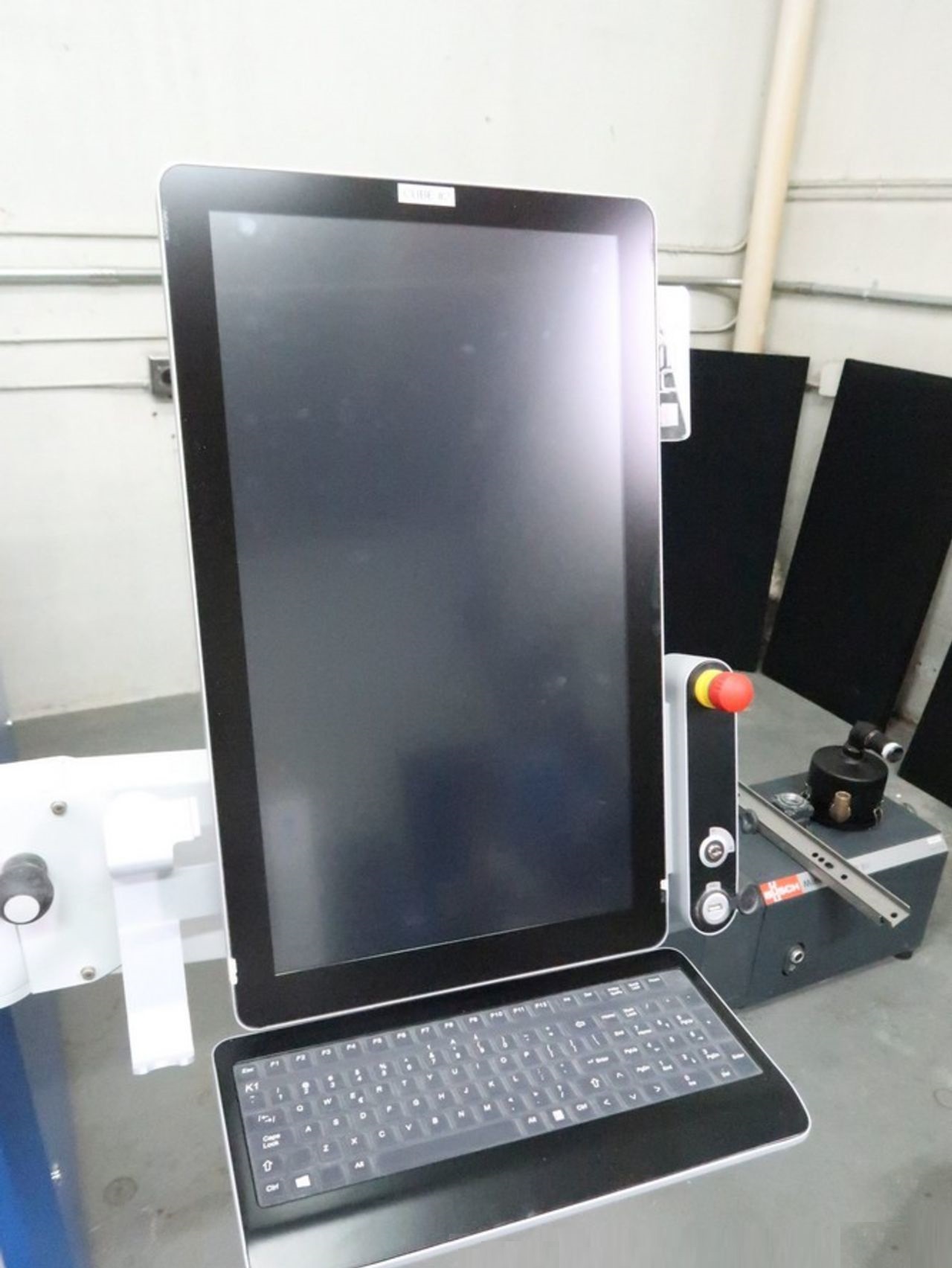

• Control System: Datron touchscreen monitor with pendant control

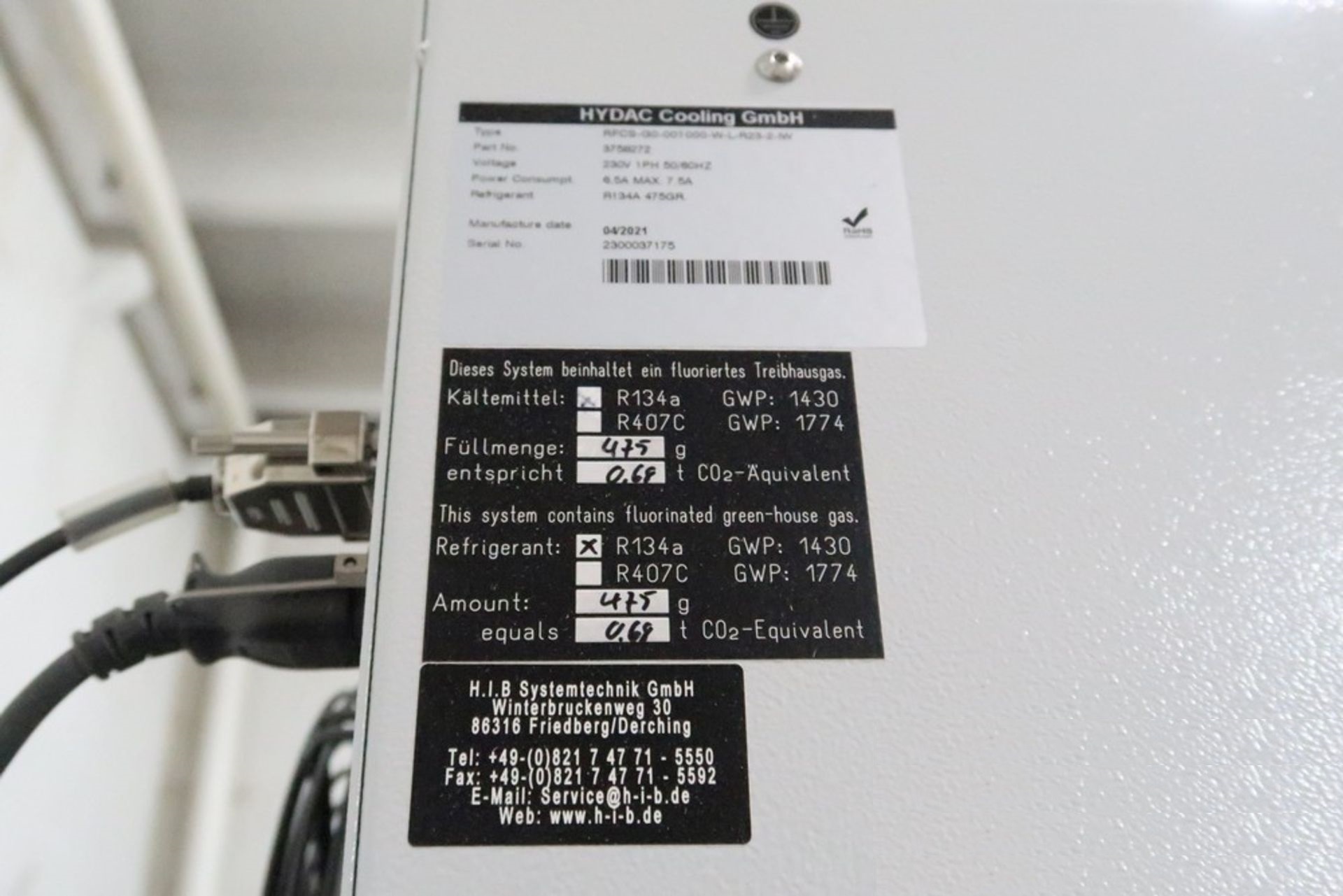

• Coolant System: Integrated mist or minimal-quantity lubrication

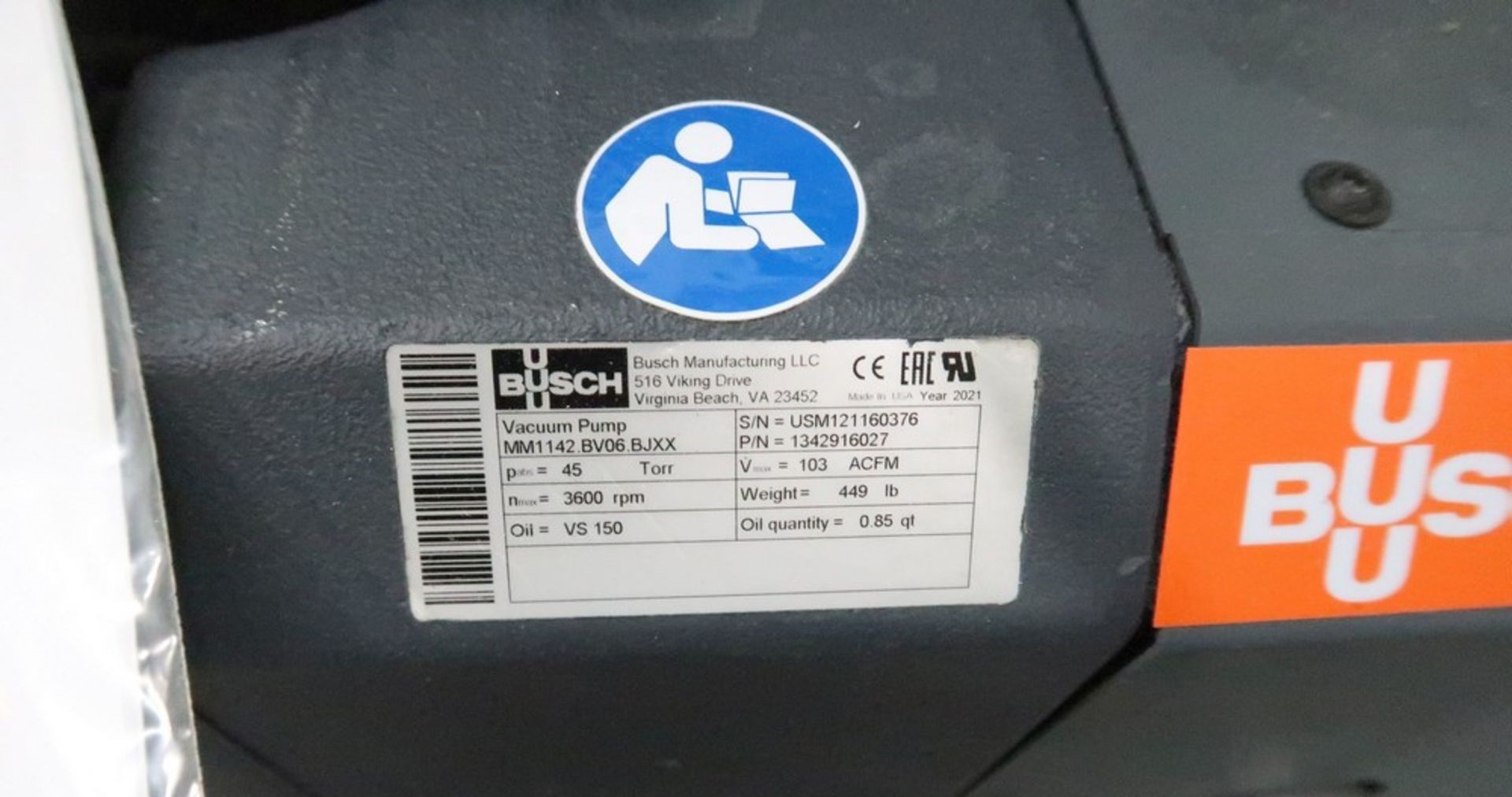

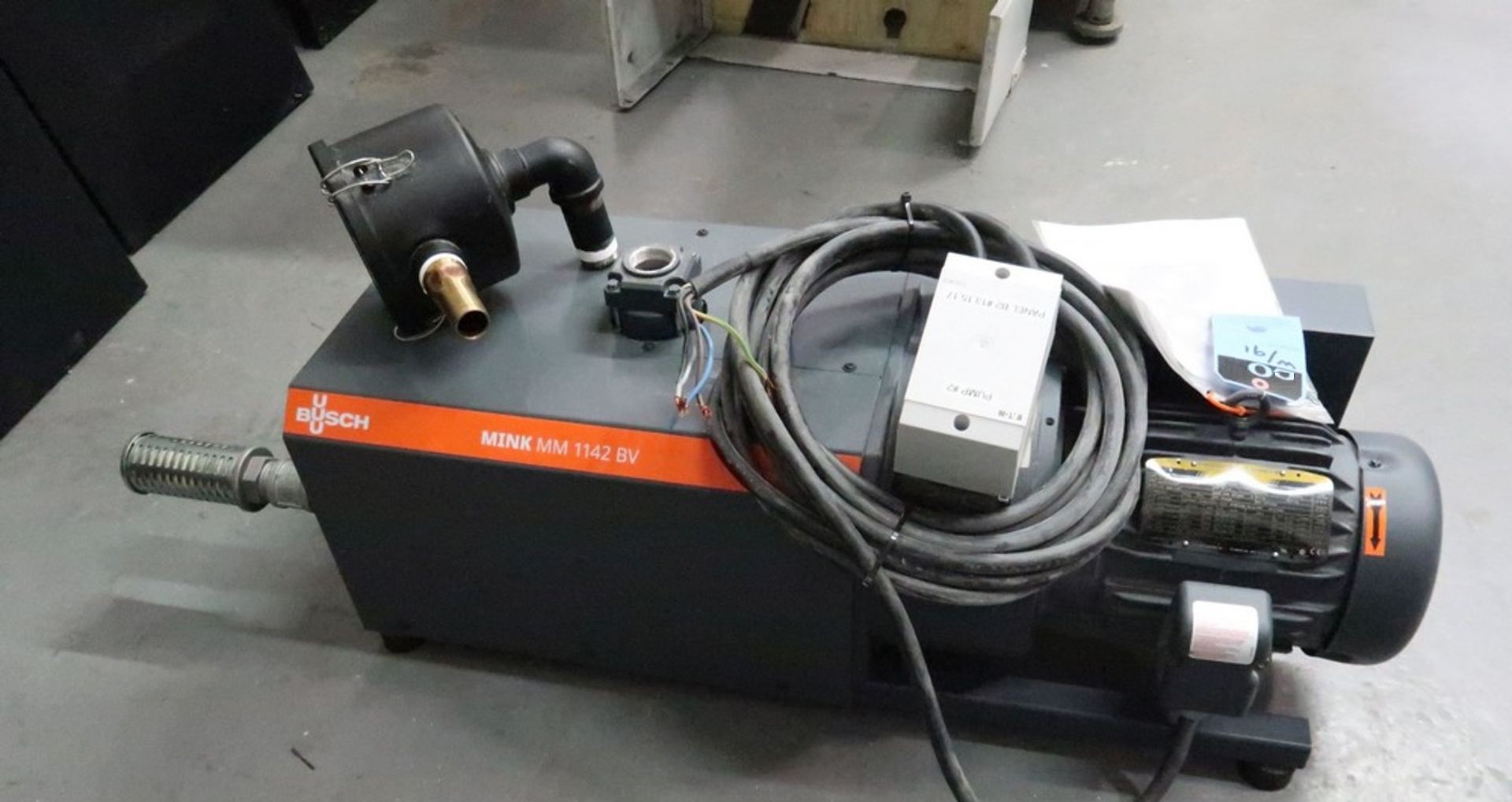

• Vacuum Pump: Included for secure workpiece clamping

Equipped With

• High-speed Datron spindle (40,000 RPM)

• HSK-E25 precision tool interface

• Automatic tool changer

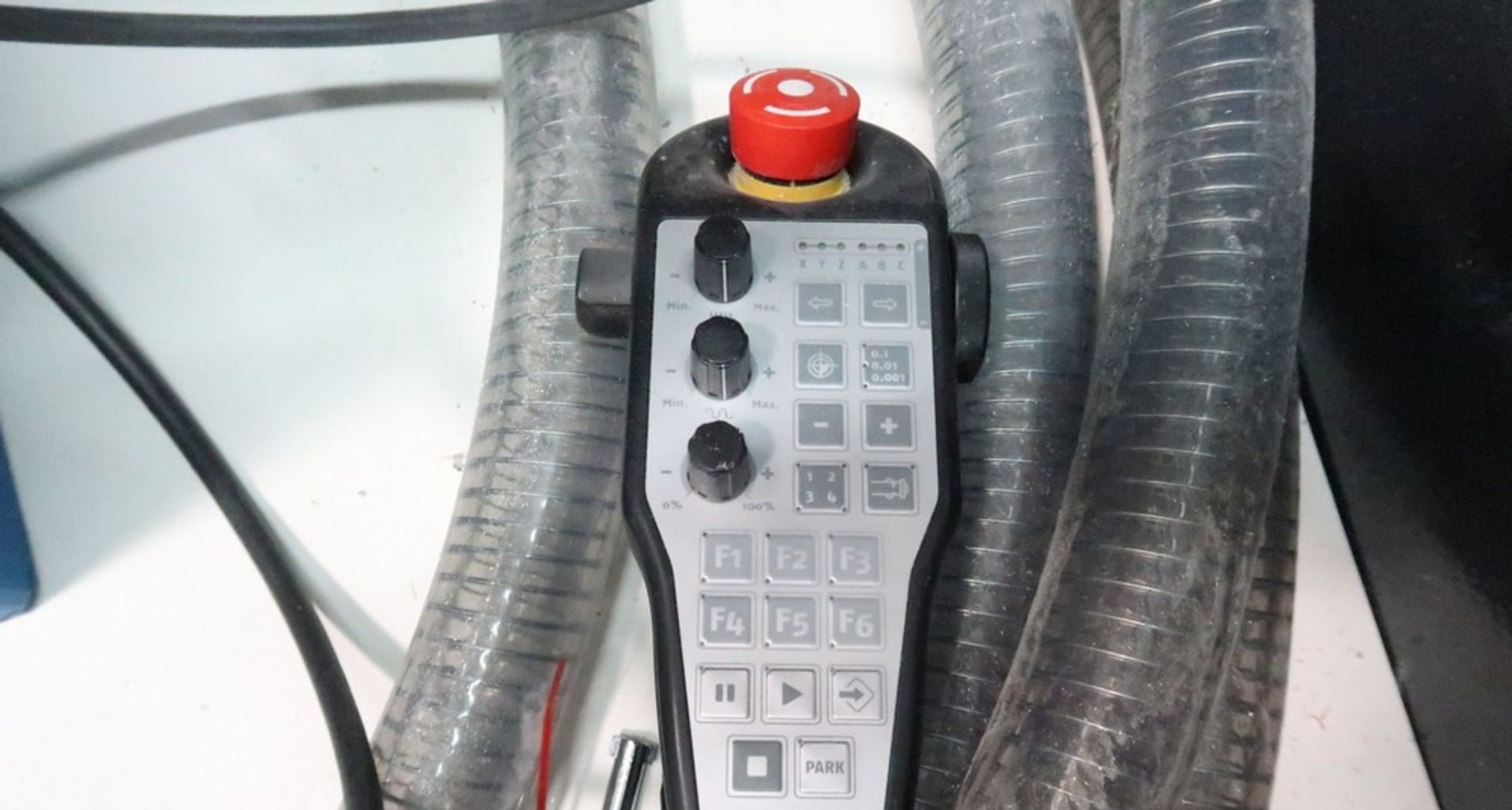

• Full CNC pendant control with touchscreen monitor

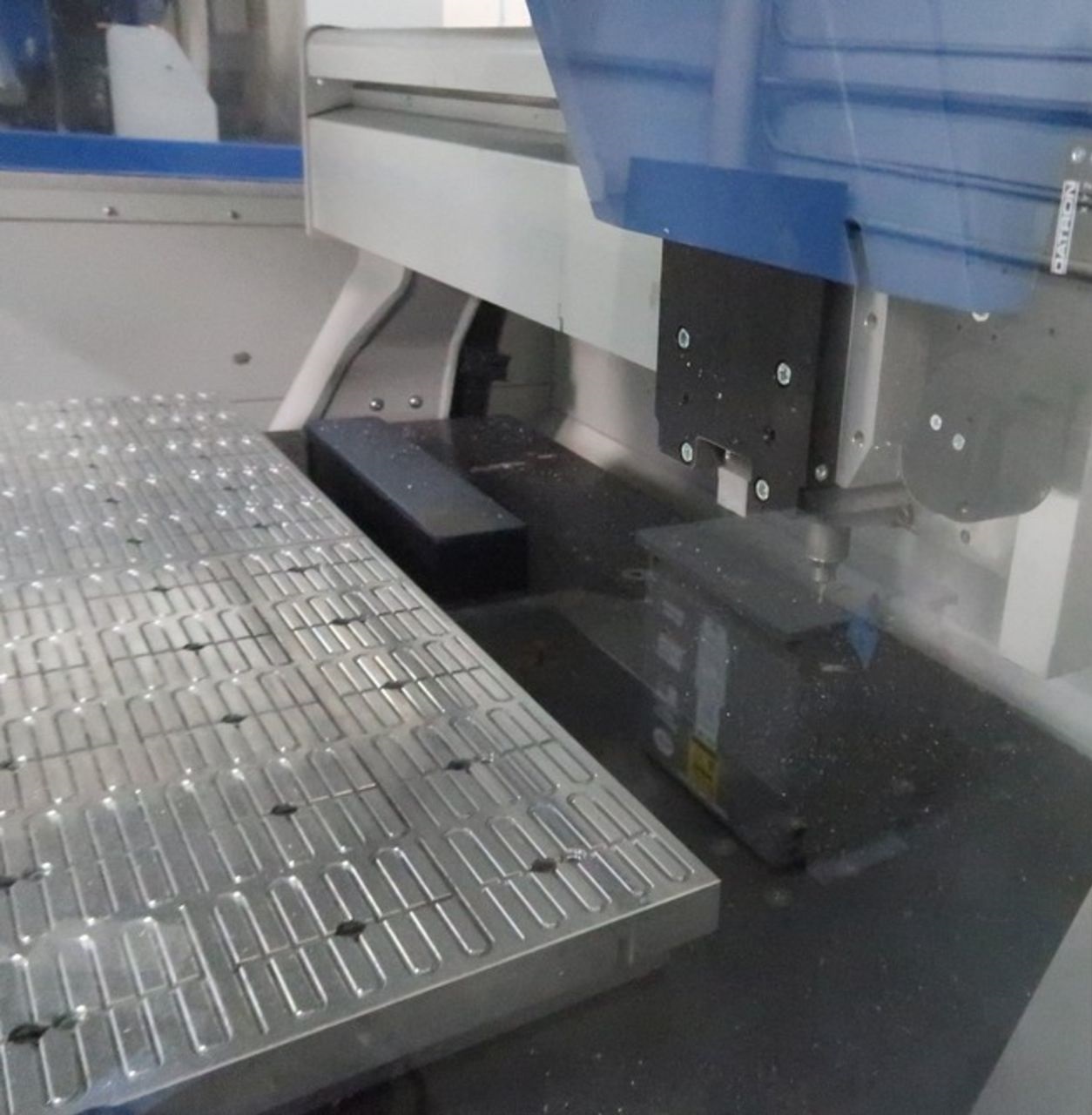

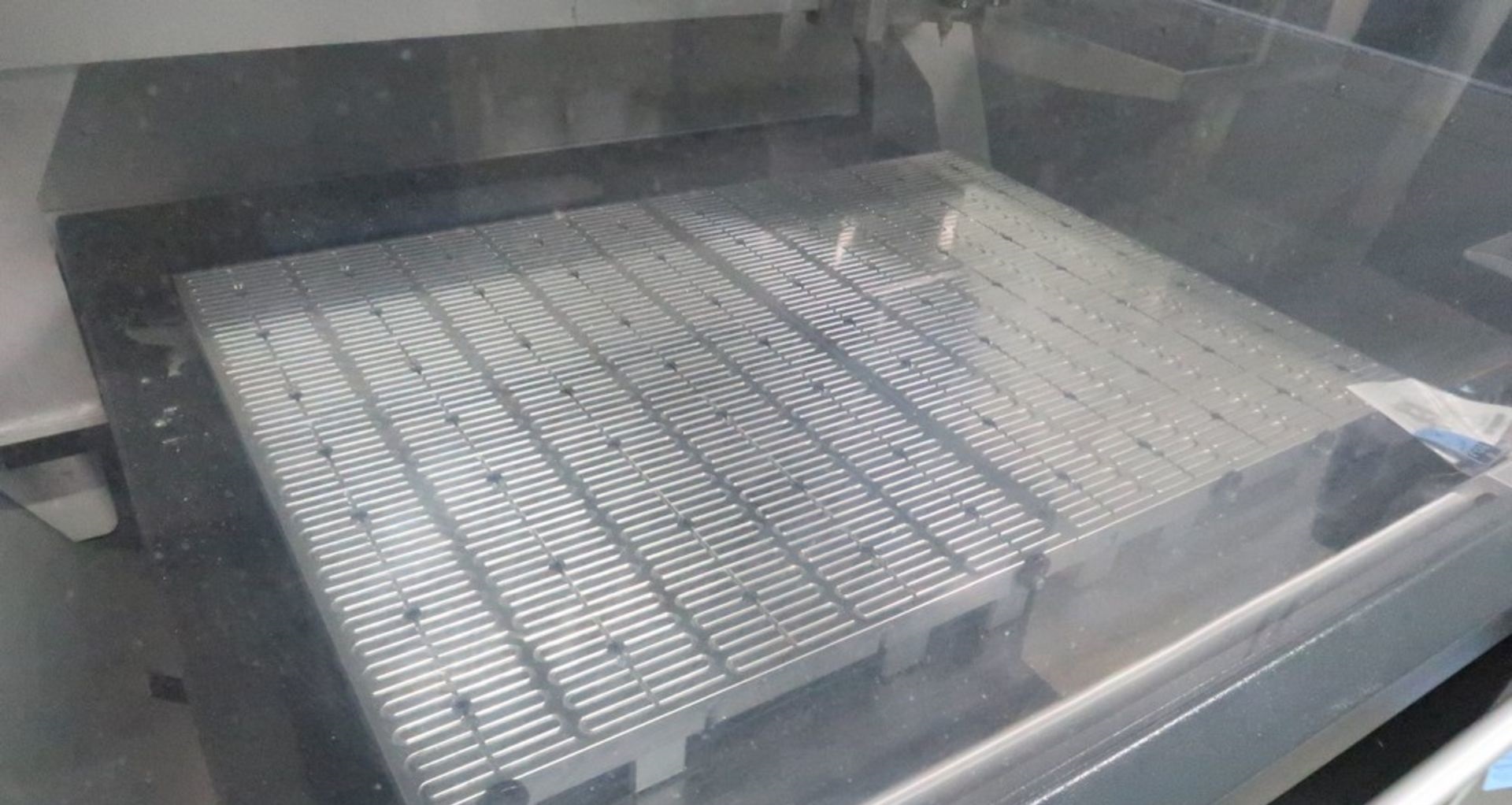

• Vacuum clamping system with integrated pump

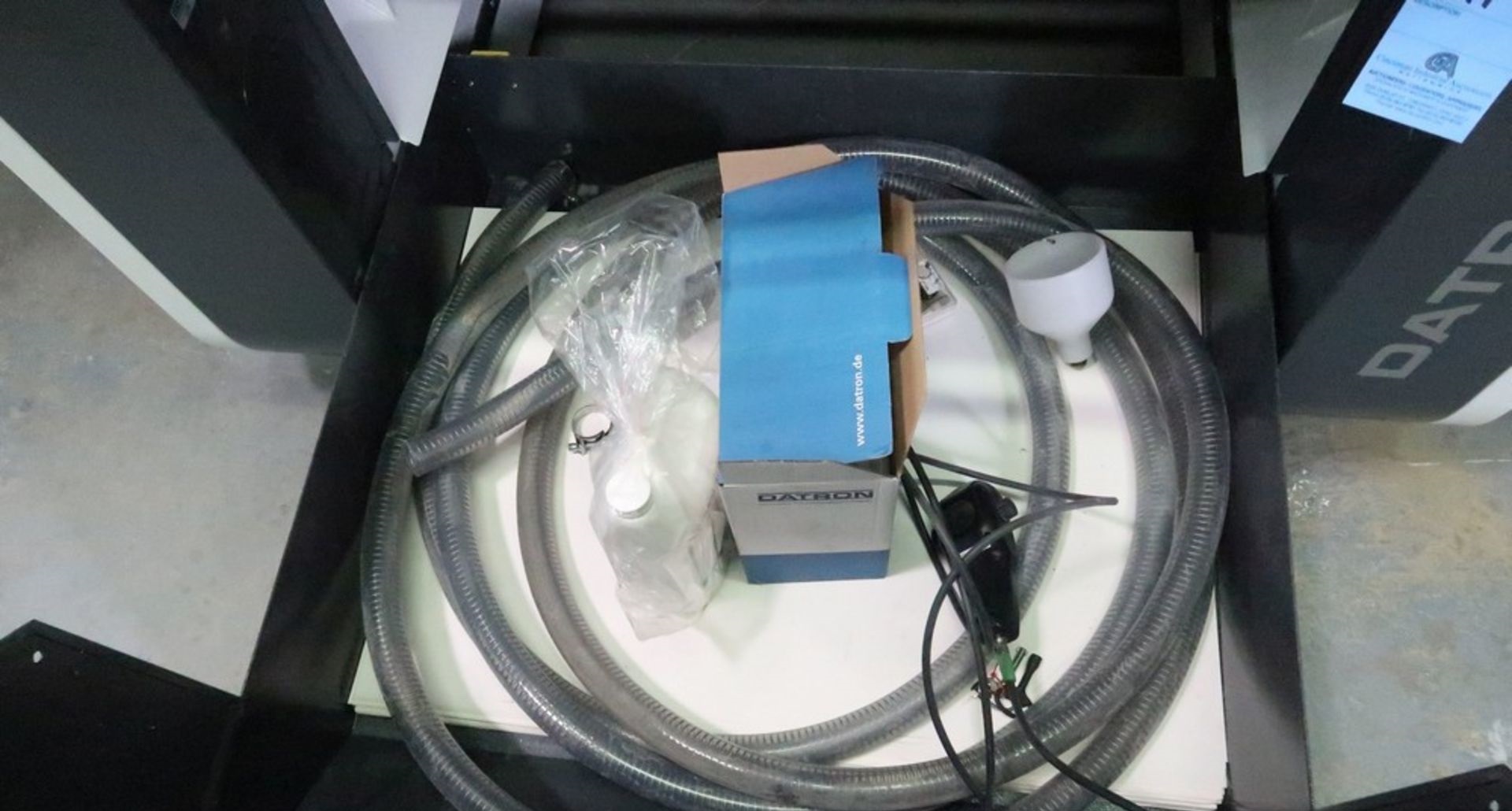

• Coolant and lubrication system

• Rigid aluminum frame for superior accuracy

Condition

• Excellent condition, lightly used model

• Fully equipped and ready for high-speed precision machining

• Ideal for applications in electronics, aerospace, mold making, and precision parts manufacturing
